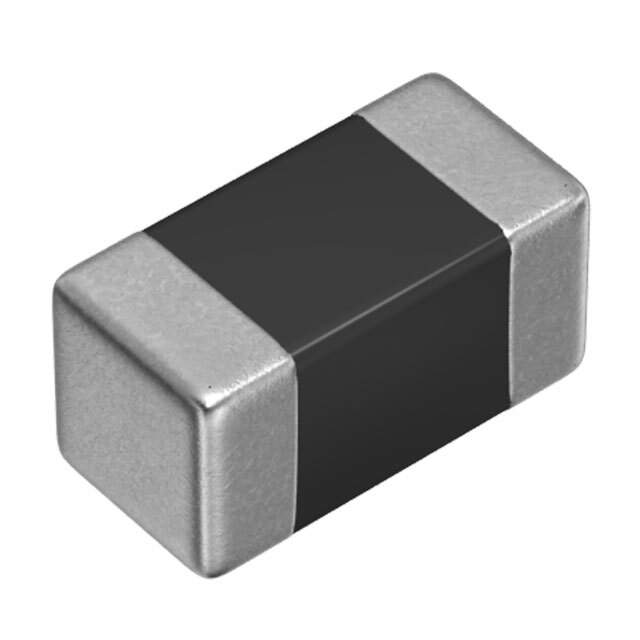

MLF1005LR47KT Real Image
Same model may have multiple batches, images only for reference.

MLF1005LR47KT

Part No MLF1005LR47KT
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470NH 50MA 420MOHM SMD / 470 nH Shielded Multilayer Inductor 50 mA 420mOhm Max 0402 (1005 Metric)
Datasheet
MLF1005LR47KT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series MLF
Package Tape & Reel (TR)
Product Status Not For New Designs
Type Multilayer
Material - Core Ferrite
Inductance 470 nH
Tolerance ±10%
Current Rating (Amps) 50 mA
Shielding Shielded
DC Resistance (DCR) 420mOhm Max
Q @ Freq 25 @ 10MHz
Frequency - Self Resonant 190MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 10 MHz
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.022" (0.55mm)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 10,000
Win Source Part Number 1069376-MLF1005LR47KT
Ultra Librarian 3D Model Ultra Librarian MLF1005LR47KT CAD Model

Description

The 1069376-MLF1005LR47KT is a fixed inductor from the MLF series.

  • Type: multilayer
  • Shielding: yes
  • Inductance: 470 nH
  • Q @ Freq: 25 @ 10MHz
  • Package Type: 0402 (1005 Metric)
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • Supplier: TDK Corporation
  • Standard Package: 10,000
  • ECCN: EAR99
  • REACH: unaffected
