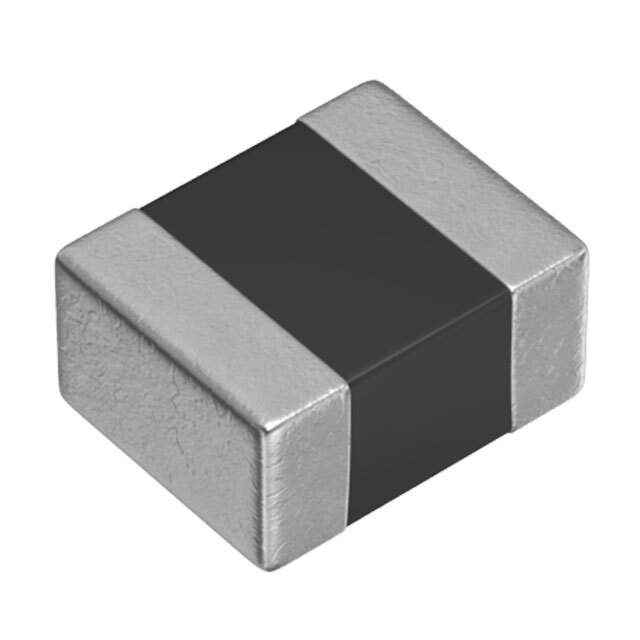

The MLP2520V2R2ST is a multilayer power inductor manufactured by TDK Corporation. It's designed for power supply circuits, DC-DC converters, and other power management applications, focusing on high efficiency and compact size. The inductor is well-suited for use in portable devices and other space-constrained applications.

Applications

• DC-DC Converters
• Power Amplifiers
• Power Supplies
• Voltage Regulators
• Portable Electronic Devices

Features

• Inductance Value: 2.2 µH (microhenries).
• Small Size: 2520 package size (2.5mm x 2.0mm).
• High Current Handling: Capable of handling relatively high DC current.
• Low DC Resistance (DCR): Minimizes power losses for enhanced efficiency.
• Multilayer Construction: Enhances electrical characteristics and ensures reliability.
• Shielded Construction: Reduces electromagnetic interference (EMI) to improve circuit performance.

Benefits

• Enhanced Power Efficiency: Low DCR minimizes power dissipation, contributing to higher efficiency in power conversion.
• Reduced EMI: Shielded construction lowers electromagnetic interference, enhancing the performance of sensitive circuits.
• High Current Capability: Supports use in applications with significant DC current requirements.
• Compact Design: Allows for integration into space-constrained environments.
• Stable Performance: Multilayer build provides consistent inductance over temperature and frequency variations.

Additional Details

The MLP2520V2R2ST inductor is used to store energy and filter noise in power supply circuits. Its shielded design is crucial for applications where EMI reduction is essential. Key considerations when selecting this inductor include its inductance value, saturation current, and DCR. Detailed specifications and performance characteristics can be found in the TDK datasheet. Appropriate soldering techniques should be used to ensure reliable electrical and mechanical connections. The operating temperature range of the inductor should be considered for various operating conditions.
