Same model may have multiple batches, images only for reference.

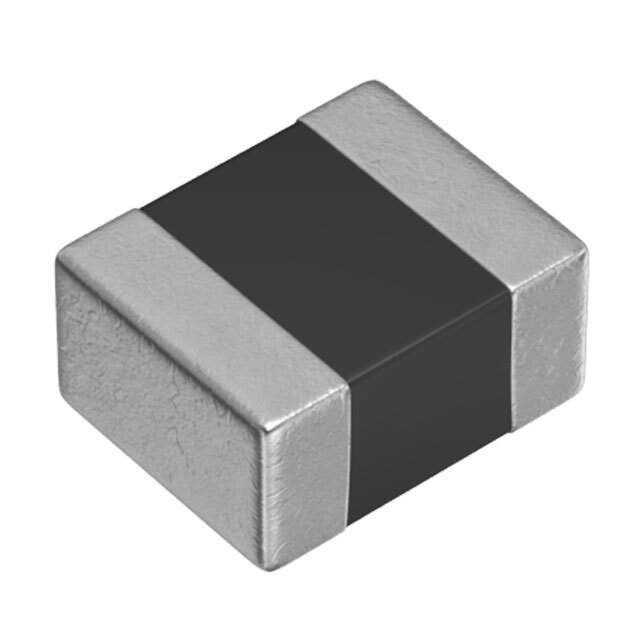

MLP2520V4R7ST0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2520V4R7ST0S1

Part No MLP2520V4R7ST0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 800MA 220 MOHM
Datasheet
MLP2520V4R7ST0S1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 800mA
DC Resistance (DCR) 286 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 2MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 1077853-MLP2520V4R7ST0S1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MLP2520V4R7ST0S1 CAD Model

Description

The MLP2520V4R7ST0S1 from TDK Corporation is a multilayer inductor with an inductance of 4.7μH and a current rating of 800mA.

  • Inductance: 4.7μH
  • Current Rating: 800mA
  • Mounting Type: Surface Mount
  • Core Material: Ferrite
  • DC Resistance (DCR) (Max): 286 mOhm
  • Tolerance: ±20%
  • Operating Temperature (Max): 125°C
  • Operating Temperature (Min): -40°C
  • Applications: Inductors, Coils, and Chokes
