Same model may have multiple batches, images only for reference.

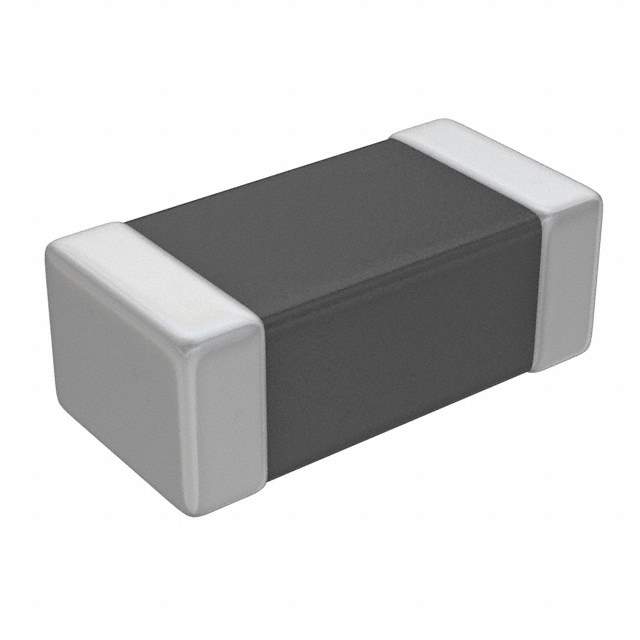

MMZ1608S800CTAH0 Real Image
Same model may have multiple batches, images only for reference.

MMZ1608S800CTAH0

Part No MMZ1608S800CTAH0
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 80 OHM 0603 1LN
Datasheet
MMZ1608S800CTAH0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 80 Ohm @ 100MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 150 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.030" (0.75mm)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Win Source Part Number 041747-MMZ1608S800CTAH0
Ultra Librarian 3D Model Ultra Librarian MMZ1608S800CTAH0 CAD Model

Description

The TDK Corporation MMZ1608S800CTAH0 is a signal line filter with a maximum current rating of 500mA.

  • Maximum Current Rating: 500mA
  • Line: single
  • Impedance: 80 Ohm @ 100MHz
  • Status: not for new designs
