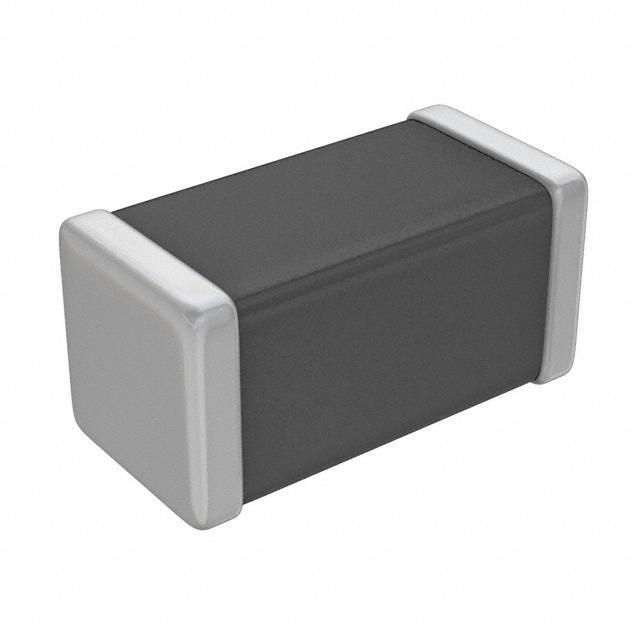

MPZ1005S300C TDK Corporation
Same model may have multiple batches, images only for reference.

MPZ1005S300C

Part No MPZ1005S300C
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 30 OHM 0402 1LN
Datasheet
MPZ1005S300C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 30 Ohm @ 100MHz
Current Rating (Max) 1.7A
DC Resistance (DCR) (Max) 35 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.022" (0.55mm)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Win Source Part Number 240132-MPZ1005S300C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MPZ1005S300C CAD Model

Description

The electronic component with Id 247305 is a power line filter manufactured by TDK Corporation.

  • Supply and Demand Status: limited
  • Maximum Current Rating: 1.7A
  • DC Resistance (DCR): 35 mOhm
  • Filter Type: power line
  • Impedance: 30 Ohm @ 100MHz
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
