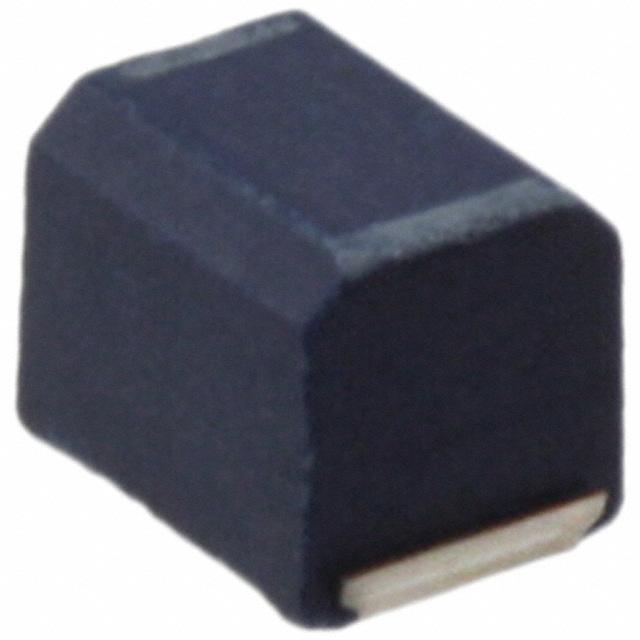

NL453232T-220J-PF TDK Corporation
Same model may have multiple batches, images only for reference.

NL453232T-220J-PF

Part No NL453232T-220J-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 180MA 3.2 OHM SMD
Datasheet
NL453232T-220J-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 22μH
Tolerance ±5%
Current Rating 180mA
DC Resistance (DCR) 3.2 Ohm Max
Q @ Freq 50 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1812
Height - Seated (Max) 0.134" (3.40mm)
Win Source Part Number 025453-NL453232T-220J-PF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NL453232T-220J-PF CAD Model

Description

The TDK Corporation 025453-NL453232T-220J-PF wirewound inductor is a surface mount device designed to offer an inductance of 22μH with a tolerance of ±5%.

  • Current Rating: 180mA (Maximum)
  • Core Material: ferrite
  • DC Resistance (DCR): 3.2 Ohm Max
  • Q @ Freq: 50 @ 2.52MHz
  • Frequency - Self-Resonant: 13MHz
  • Frequency - Test: 2.52MHz
  • Package: 1812
  • Height: 0.134" (3.40mm)
  • Operating Temperature: -40°C to 105°C
  • Application: inductors, coils, and chokes
