Same model may have multiple batches, images only for reference.

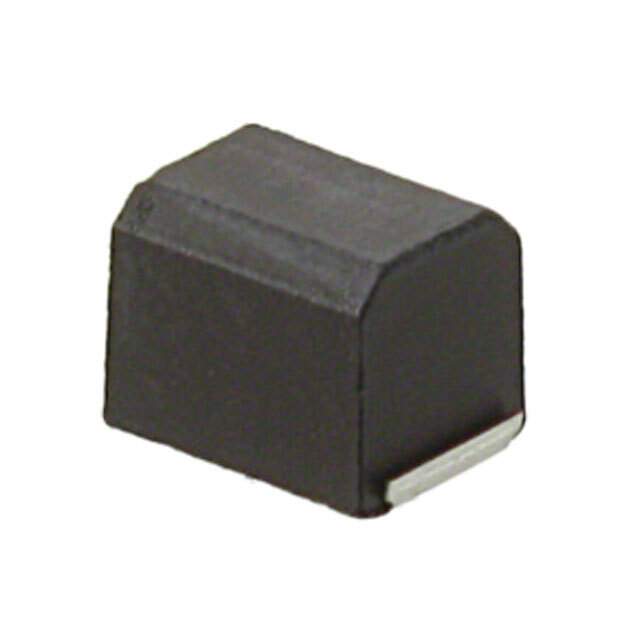

NLFC453232T-331K-PF Real Image
Same model may have multiple batches, images only for reference.

NLFC453232T-331K-PF

Part No NLFC453232T-331K-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 330UH 45MA 6 OHM SMD
Datasheet
NLFC453232T-331K-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 330μH
Tolerance ±10%
Current Rating 45mA
DC Resistance (DCR) 6 Ohm
Q @ Freq 10 @ 796kHz
Frequency - Self Resonant 4MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 796kHz
Mounting SMD (SMT)
Case / Package 1812
Height - Seated (Max) 0.134" (3.40mm)
Win Source Part Number 045262-NLFC453232T-331K-PF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NLFC453232T-331K-PF CAD Model

Description

The TDK Corporation NLFC453232T-331K-PF is a wirewound surface mount inductor with a current rating of 45mA and an inductance of 330μH.

  • Current Rating: 45mA
  • Inductance: 330μH
  • Tolerance: ±10%
  • Q @ Freq: 10 @ 796kHz
  • Frequency - Self Resonant: 4MHz
  • DC Resistance (DCR): 6 Ohm
  • Packaging: Reel - TR
  • Height - Seated (Max): 0.134" (3.40mm)
  • Mounting Type: SMD (SMT)
  • Temperature Range - Operating: -40°C to 105°C
  • Status: Active
  • Popularity: Medium
  • Supply and demand status: Limited
