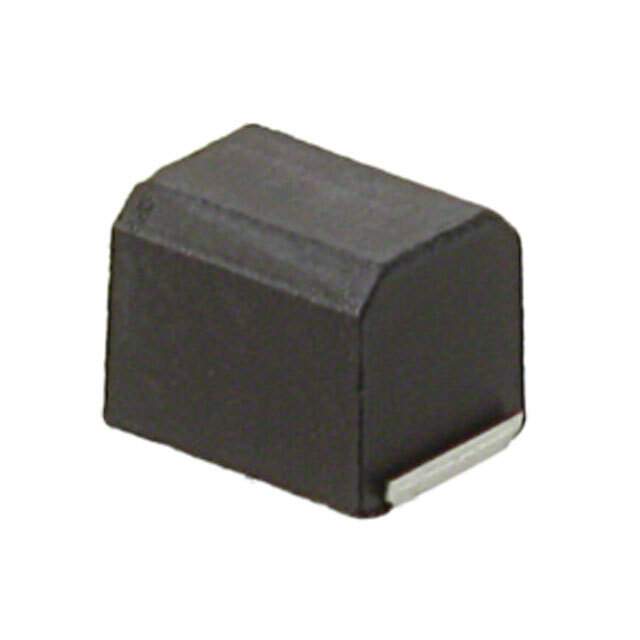

The NLFC453232T-680K is a ferrite chip inductor manufactured by TDK Corporation. It is designed for use in power supply circuits and general electronic devices. These inductors are commonly employed for noise filtering, impedance matching, and oscillation suppression due to their high impedance and compact size.

Applications

• Power supply circuits: Filtering noise in DC-DC converters and other power regulation circuits.
• Noise filtering: Reducing electromagnetic interference (EMI) in electronic devices.
• Impedance matching: Matching impedance in RF circuits to minimize signal reflections.
• Oscillation suppression: Preventing unwanted oscillations in electronic circuits.
• Signal line impedance control: Maintaining consistent impedance along signal pathways to reduce reflections and improve signal quality.

Features

• High impedance: Provides effective noise filtering and impedance matching.
• Compact size: Small form factor allows for easy integration into space-constrained applications.
• High current capability: Can handle high current levels without saturation.
• Excellent temperature stability: Maintains stable performance over a wide temperature range.
• RoHS compliant: Complies with environmental regulations.

Benefits

• Improved power supply performance: Reduces noise and ripple in power supply circuits, enhancing performance.
• Reduced EMI: Minimizes electromagnetic interference, ensuring compliance with regulatory standards.
• Enhanced signal integrity: Improves signal quality by matching impedance and suppressing oscillations.
• Increased system reliability: Provides stable and reliable performance, enhancing overall system reliability.
• Cost-effective solution: Provides a cost-effective solution for noise filtering and impedance matching.

Additional Details

The NLFC453232T-680K has an inductance value of 68µH. It is surface mount device, typically available in a 1812 package size (4.5mm x 3.2mm). Its rated current is specified in the datasheet, and depends on temperature rise. Detailed electrical characteristics can be found in the manufacturer's datasheet, including parameters such as inductance tolerance, DC resistance, and self-resonant frequency.
