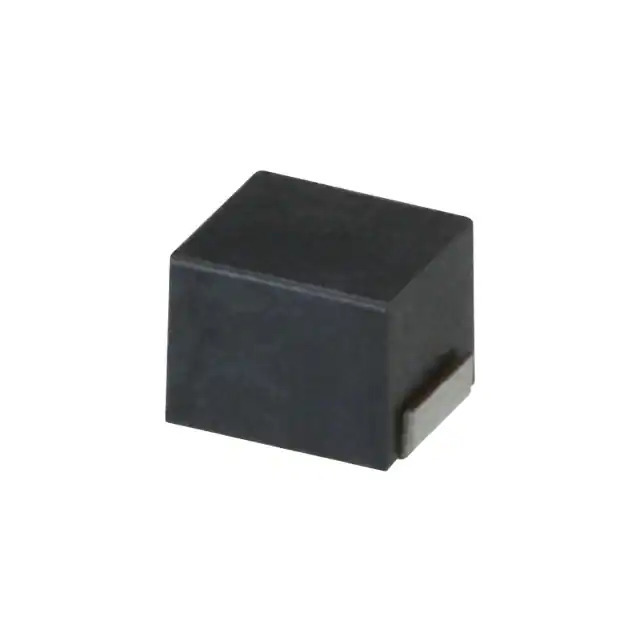

NLV25T-R33J-EFD TDK Corporation
Same model may have multiple batches, images only for reference.

NLV25T-R33J-EFD

Part No NLV25T-R33J-EFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 330NH 400MA 600MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series NLV-EFD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 nH
Tolerance ±5%
Current Rating (Amps) 400 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 600mOhm Max
Q @ Freq 30 @ 25.2MHz
Frequency - Self Resonant 400MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 25.2 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.075" (1.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370358-NLV25T-R33J-EFD
Ultra Librarian 3D Model Ultra Librarian NLV25T-R33J-EFD CAD Model

Description

The NLV25T-R33J-EFD is a surface mount fixed inductor from TDK Corporation.

  • Series: NLV-EFD
  • Package / Case: 1008 (2520 Metric)
  • Tolerance: ±5%
  • Inductance: 330 nH
  • DC Resistance (Max): 600mOhm
  • Current Rating: 400 mA
  • Self Resonant Frequency: 400 MHz
  • Shielding: Unshielded
  • Material - Core: Ferrite
  • RoHS: Yes
  • REACH: May be affected
  • Application: Power supplies, RF circuits, and telecommunications equipment.
