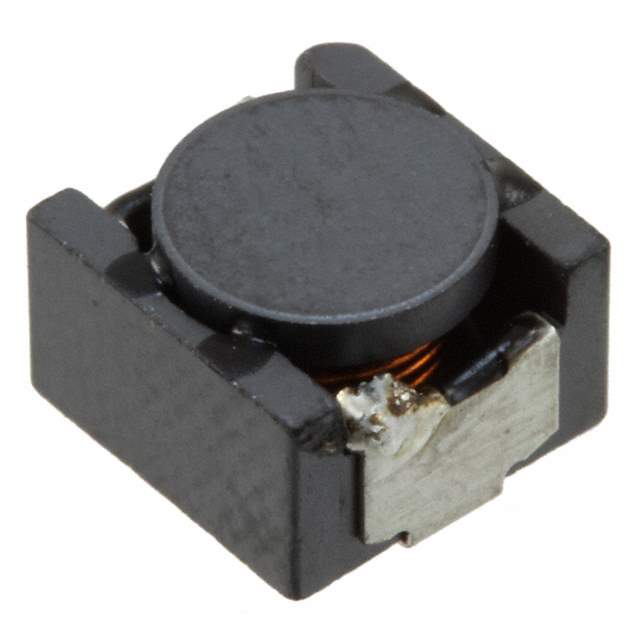

RLF7045T-121MR55-D Real Image
Same model may have multiple batches, images only for reference.

RLF7045T-121MR55-D

Part No RLF7045T-121MR55-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 120UH 550MA 480 MOHM
Datasheet
RLF7045T-121MR55-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 120μH
Tolerance ±20%
Current Rating 550mA
Current - Saturation 800mA
DC Resistance (DCR) 480 mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C to 150°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.189" (4.80mm)
Win Source Part Number 062550-RLF7045T-121MR55-D
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RLF7045T-121MR55-D CAD Model

Description

TDK Corporation Wirewound Inductors are designed for use in a wide range of electronic applications.

  • Material: high-quality ferrite material
  • Inductance: 120μH
  • Current Rating: 550mA
  • Tolerance: ±20%
  • Rating: AEC-Q200
  • DC Resistance: 480 mOhm Max
