Same model may have multiple batches, images only for reference.

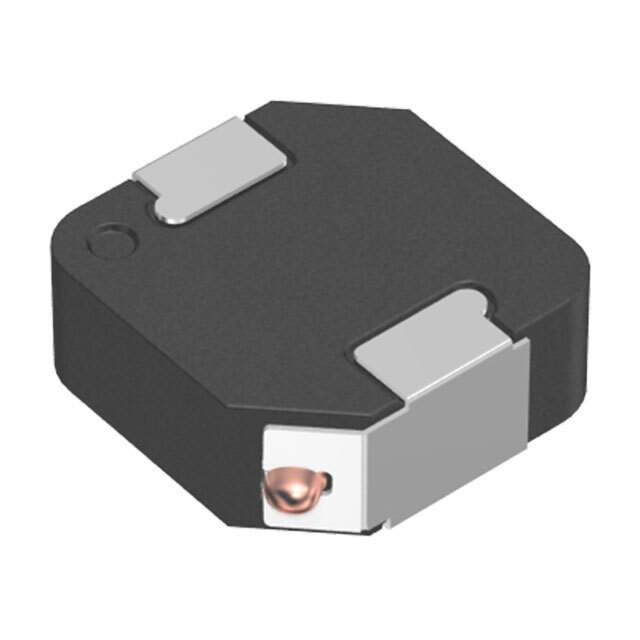

SPM10040T-2R2M-HZ Real Image
Same model may have multiple batches, images only for reference.

SPM10040T-2R2M-HZ

Part No SPM10040T-2R2M-HZ
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-HZ
Type Drum Core, Wirewound
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 16.7 A
Current - Saturation (Isat) 9.7A
Shielding Shielded
DC Resistance (DCR) 7.46mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.421" L x 0.394" W (10.70mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Other Names 445-180236-6,445-180236-2,445-180236-1
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272579-SPM10040T-2R2M-HZ
Ultra Librarian 3D Model Ultra Librarian SPM10040T-2R2M-HZ CAD Model

Description

The TDK Corporation SPM10040T-2R2M-HZ is a drum core, wirewound fixed inductor that is used in various electronic circuits.

  • Series: SPM-HZ series
  • Win Source Part Number: 1272579-SPM10040T-2R2M-HZ
  • Package/Case: Nonstandard
  • Core: Metal core
  • Height: 0.157" (4.00mm)
  • Dimension: 0.421" L x 0.394" W (10.70mm x 10.00mm)
  • Supply and Demand: Good
