Same model may have multiple batches, images only for reference.

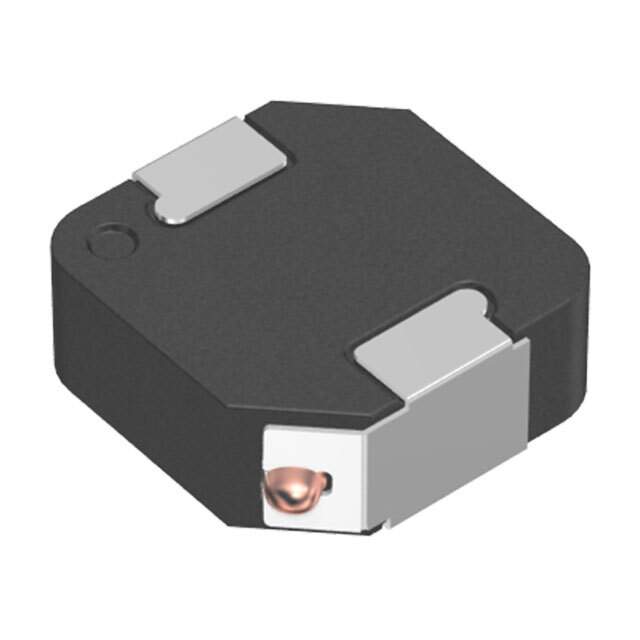

SPM10040T-3R3M Real Image
Same model may have multiple batches, images only for reference.

SPM10040T-3R3M

Part No SPM10040T-3R3M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 9.8A 11 MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 9.8 A 11mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 9.8 A
Current - Saturation (Isat) 11A
Shielding Shielded
DC Resistance (DCR) 11mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.421" L x 0.394" W (10.70mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-175127-1,445-175127-2,445-175127-6
Standard Package 500
Win Source Part Number 1000636-SPM10040T-3R3M
Ultra Librarian 3D Model Ultra Librarian SPM10040T-3R3M CAD Model

Description

The SPM10040T-3R3M is a fixed inductor from an SPM series by an unknown manufacturer.

  • Series: SPM
  • Inductance: 3.3μH
  • Tolerance: ±20%
  • Shielded: Yes
  • Current Rating: 9.8A
  • DC Resistance (DCR): 11mOhm Max
  • Packaging: Tape and Reel
  • Size: 0.421" L x 0.394" W (10.70mm x 10.00mm)
  • Height: 0.157" (4.00mm)
  • Core Type: Wirewound Drum Core
