Same model may have multiple batches, images only for reference.

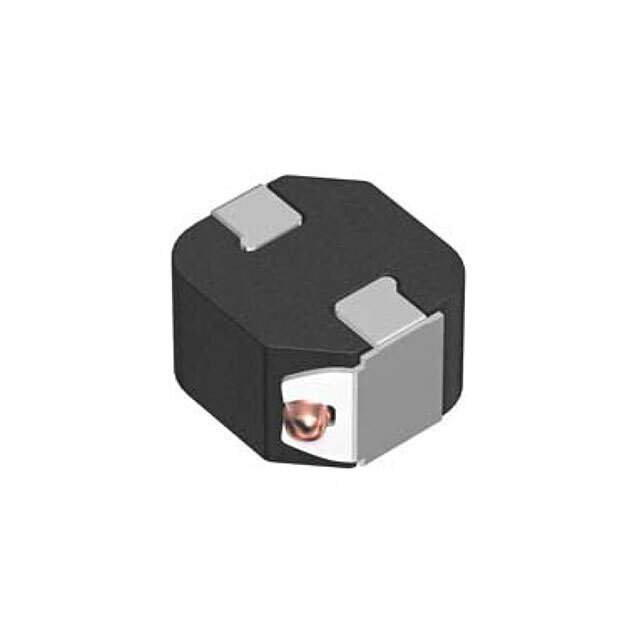

SPM4030T-1R0M Real Image
Same model may have multiple batches, images only for reference.

SPM4030T-1R0M

Part No SPM4030T-1R0M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 4.6A
Shielding Shielded
DC Resistance (DCR) 15.51mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.165" L x 0.157" W (4.20mm x 4.00mm)
Height - Seated (Max) 0.118" (3.00mm)
Other Names 445-175209-6,445-175209-1,445-175209-2
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272650-SPM4030T-1R0M
Ultra Librarian 3D Model Ultra Librarian SPM4030T-1R0M CAD Model

Description

The TDK Corporation SPM4030T-1R0M is a shielded SMD fixed inductor with a drum core and wirewound type.

  • Inductance: 1μH
  • Tolerance: ±20%
  • Current Rating: 8A
  • DC Resistance (DCR): 15.51mΩ max
  • Mounting: Designed to be mounted on a PCB
  • Height: 0.118" (3.00mm) when seated
  • Temperature Range: -40°C to 125°C
  • Package/Case: Nonstandard
  • Units per Package: 500
