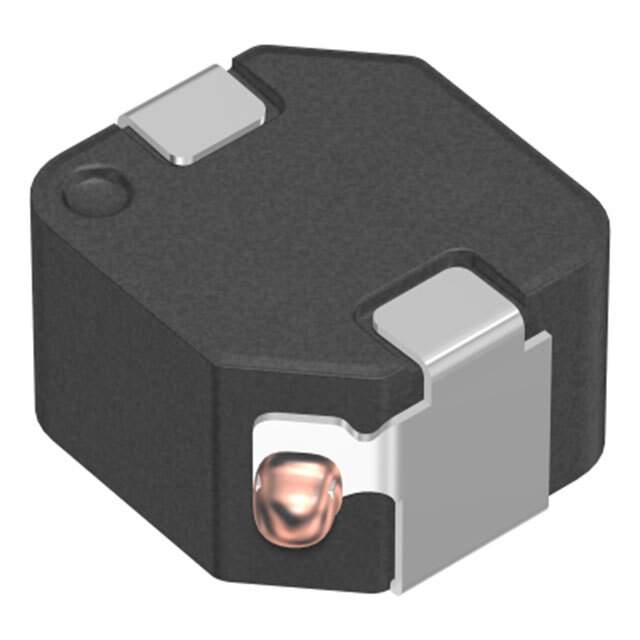

SPM4030T-1R5M-HZ Real Image
Same model may have multiple batches, images only for reference.

SPM4030T-1R5M-HZ

Part No SPM4030T-1R5M-HZ
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-HZ
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 3.6 A
Current - Saturation (Isat) 3.6A
Shielding Shielded
DC Resistance (DCR) 25.63mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.161" L x 0.157" W (4.10mm x 4.00mm)
Height - Seated (Max) 0.118" (3.00mm)
Other Names 445-SPM4030T-1R5M-HZTR,445-SPM4030T-1R5M-HZDKR,445-SPM4030T-1R5M-HZCT
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272582-SPM4030T-1R5M-HZ
Ultra Librarian 3D Model Ultra Librarian SPM4030T-1R5M-HZ CAD Model

Description

The SPM-HZ series electronic component is a drum core, wirewound type inductor, coil, and choke.

  • Win Source Part Number: 1272582-SPM4030T-1R5M-HZ
  • Shielded: Shielded
  • Tolerance: ±20%
  • Height: 0.118 inches
  • DC Resistance: 25.63mOhm Max
  • Standard Package: 500 units
  • Operating Temperature: -40°C to 125°C
