Same model may have multiple batches, images only for reference.

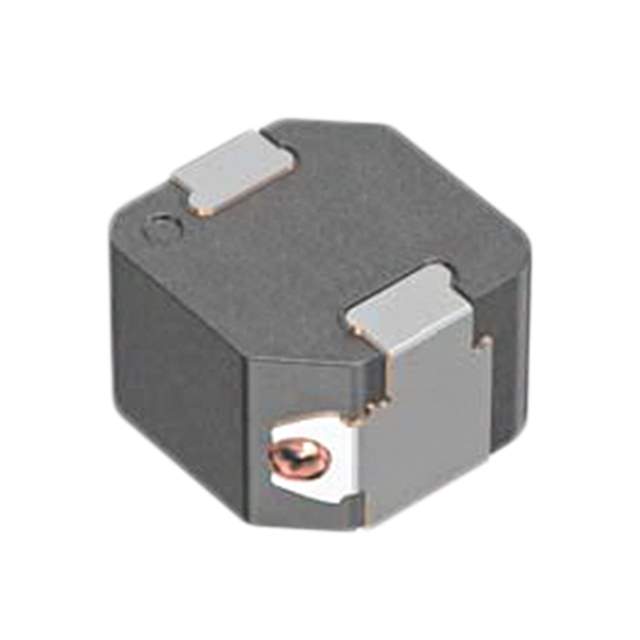

SPM6550T-4R7M Real Image
Same model may have multiple batches, images only for reference.

SPM6550T-4R7M

Part No SPM6550T-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 7 A
Current - Saturation (Isat) 7.6A
Shielding Shielded
DC Resistance (DCR) 23.7mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD, J-Lead
Dimension 0.280" L x 0.256" W (7.10mm x 6.50mm)
Height - Seated (Max) 0.197" (5.00mm)
Other Names 445-174746-1,445-174746-2,445-174746-6
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272611-SPM6550T-4R7M
Ultra Librarian 3D Model Ultra Librarian SPM6550T-4R7M CAD Model

Description

The SPM6550T-4R7M is a fixed inductor from TDK Corporation.

  • Series: SPM
  • Packaging: Tape and reel
  • Core Type: Drum core, wirewound
  • Shielding: Yes
  • Inductance: 4.7 µH
  • Height: 0.197" (5.00mm)
  • Standard Package: 1,000
  • Mounting: Surface Mount Device (SMD)
  • Tolerance: ±20%
  • Temperature Range: -40°C ~ 125°C
  • Current Rating: 7A
