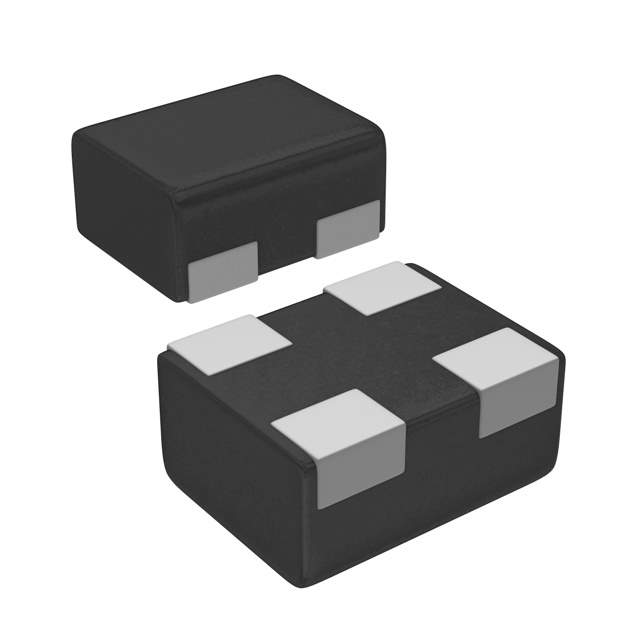

TCM0806G-350-2P-T200 Real Image
Same model may have multiple batches, images only for reference.

TCM0806G-350-2P-T200

Part No TCM0806G-350-2P-T200
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 100MA 2LN 35 OHM SMD
Datasheet
TCM0806G-350-2P-T200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 35 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 1.15 Ohm
Voltage Rating - DC 10V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.018" (0.45mm)
Dimension 0302 (0806 Metric), 4 Lead
Win Source Part Number 054466-TCM0806G-350-2P-T200
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TCM0806G-350-2P-T200 CAD Model

Description

The TCM0806G-350-2P-T200 is a Signal Line Filter manufactured by TDK Corporation. The device has a voltage rating of 10V and a current rating of 100mA. The device is available in a reel - TR packaging and has a mounting option of SMD (SMT).

  • Manufacturer: TDK Corporation
  • Voltage Rating: 10V
  • Current Rating: 100mA
  • Packaging: reel - TR
  • Mounting Option: SMD (SMT)
  • Height: 0.018" (0.45mm)
  • Lines: 2
  • Impedance @ Frequency: 35 Ohm @ 100MHz
  • DC Resistance (DCR) (Max): 1.15 Ohm
  • Applications: Filters
  • Temperature Range: -25°C to 85°C
  • Supply and Demand Status: balance
