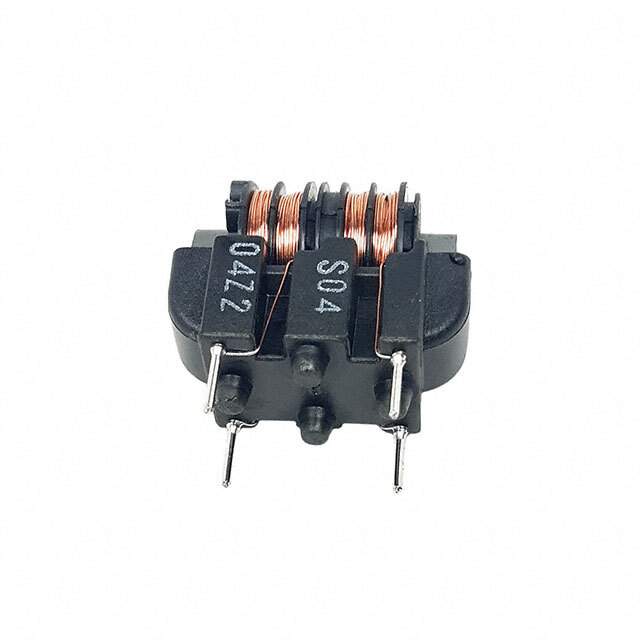

SSR10VS-13075 Real Image
Same model may have multiple batches, images only for reference.

SSR10VS-13075

Part No SSR10VS-13075
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 7.5MH 1.3A 2LN TH  /  7.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.3A DCR 240mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 7.5 mH @ 10 kHz
Current Rating (Max) 1.3A
DC Resistance (DCR) (Max) 240mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10VS
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 399-19043,UALR10VS130750
Standard Package 600
Win Source Part Number 1104165-SSR10VS-13075
Ultra Librarian 3D Model Ultra Librarian SSR10VS-13075 CAD Model

Description

The KEMET SSR series common mode choke is a through-hole mounting type component with a vertical, 4 PC pin package/case.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 1.3A
  • Inductance: 7.5 mH @ 10 kHz
  • DC Resistance (DCR): 240mOhm max
  • Package: 600
  • Maximum Height: 0.827 inches (21.00mm)
  • Operating Temperature: -25°C to 120°C
