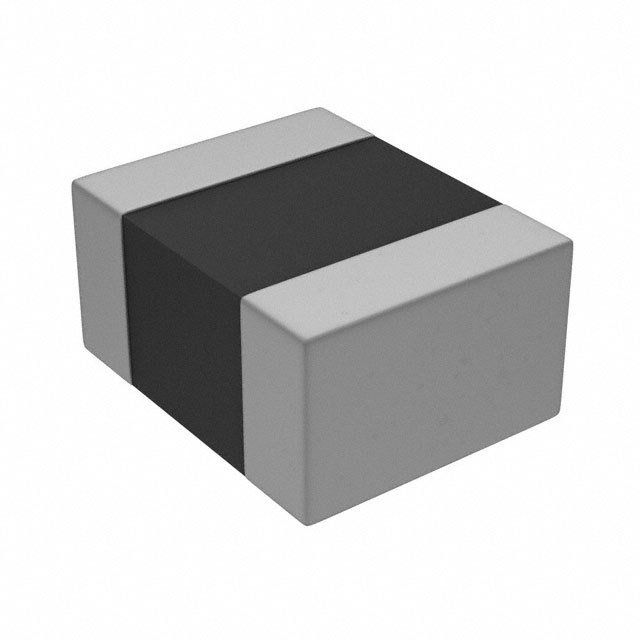

The TFM201610A-2R2M is a thin-film metal power inductor manufactured by TDK Corporation. This inductor is designed for use in power supply circuits in portable devices. Its small size and high efficiency make it suitable for space-constrained applications.

Applications

• Smartphones: Used in power management circuits within smartphones.
• Tablets: Suitable for voltage regulation in tablets.
• Wearable Devices: Employed in smartwatches, fitness trackers, and other wearable technology.
• Portable Audio Players: Utilized in the power supplies of portable music players.
• DC-DC Converters: Ideal for use in DC-DC converters for voltage step-up or step-down.

Features

• Small Size: Compact 2016 (2.0 x 1.6 mm) footprint.
• Low DC Resistance: Minimizes power loss and improves efficiency.
• High Inductance: Offers an inductance value of 2.2µH.
• Metal Alloy Core: Provides excellent saturation characteristics.
• High Current Capability: Supports high current levels without significant inductance drop.

Benefits

• Space Saving: The small size enables compact designs in portable devices.
• High Efficiency: Low DC resistance reduces power dissipation and increases efficiency.
• Stable Inductance: Metal alloy core ensures stable inductance under varying current and temperature conditions.
• Improved Performance: High current capability allows for stable operation in demanding applications.
• Extended Battery Life: Lower power losses contribute to longer battery life in portable devices.

Additional Details

The TFM201610A-2R2M has a rated current specified in TDK's datasheet. It is compliant with RoHS standards, ensuring environmental safety. Its operating temperature range is typically between -40°C to +85°C. This component is essential in providing stable and efficient power delivery in portable electronics.
