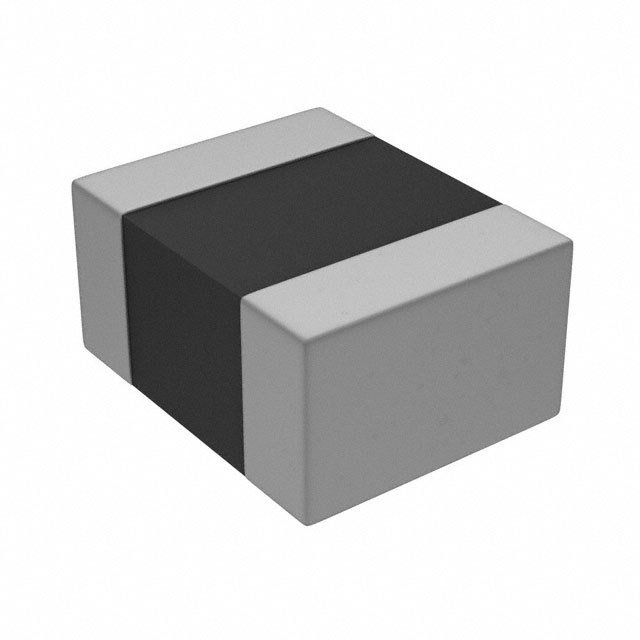

The TFM201610A-R40M-T00 is a thin-film metal power inductor from TDK Corporation. These inductors are specifically designed for power management in portable devices where efficiency and size are crucial.

Applications


• Smartphones: Used for power regulation in smartphone circuits.

• Tablets: Found in the power management systems of tablets.

• Wearable Technology: Suitable for use in smartwatches and fitness trackers.

• Portable Game Consoles: Employed in the power supplies of handheld gaming devices.

• DC-DC Converters: Used in DC-DC converters for voltage conversion.

Features


• Small Footprint: The 2016 (2.0 x 1.6 mm) package size is ideal for compact designs.

• Low DC Resistance: Minimizes power loss and enhances efficiency.

• Inductance Value: Features an inductance of 0.40µH (R40 = 0.40).

• Metal Alloy Core: Offers excellent saturation characteristics and inductance stability.

• High Current Handling: Designed to handle substantial current without significant inductance drop.

Benefits


• Space Efficiency: Small size allows for integration into space-constrained applications.

• Increased Efficiency: Low DC resistance results in less power dissipation and greater energy efficiency.

• Stable Performance: The metal alloy core ensures stable inductance under different operating conditions.

• Reliable Operation: High current capability provides reliable operation even under heavy loads.

• Extended Battery Life: Lower power loss contributes to increased battery life in portable devices.

Additional Details

The TFM201610A-R40M-T00 is RoHS compliant, adhering to environmental regulations. The detailed electrical characteristics, including rated current, can be found in the manufacturer's datasheet. It is designed to operate within a specified temperature range, typically -40°C to +85°C. The inductor's robust design ensures consistent and reliable power delivery in demanding portable electronic applications.
