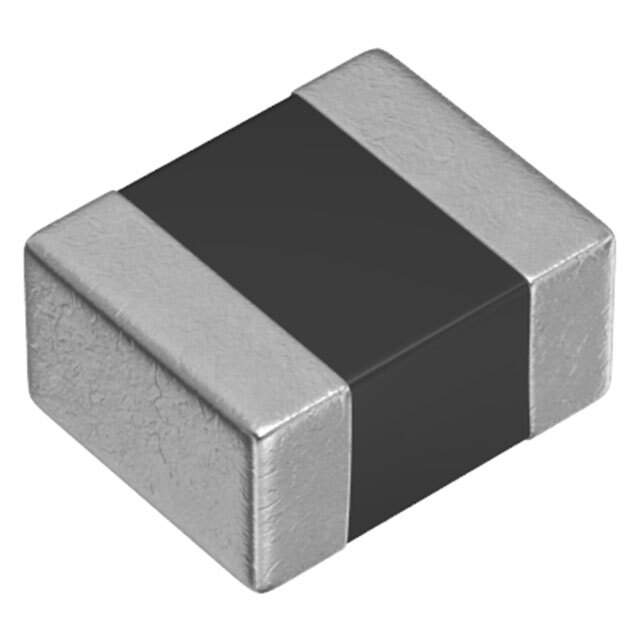

TFM252012ALMAR15MTAA Real Image
Same model may have multiple batches, images only for reference.

TFM252012ALMAR15MTAA

Part No TFM252012ALMAR15MTAA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 150NH 7.3A 11 MOHM SMD  /  150 nH Shielded Thin Film Inductor 7.3 A 11mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series TFM-ALMA
Package Tape & Reel
Type Thin Film
Material - Core Metal
Inductance 150 nH
Tolerance ±20%
Current Rating (Amps) 7.3 A
Current - Saturation (Isat) 9A
Shielding Shielded
DC Resistance (DCR) 11mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-181486-1,445-181486-2,445-181486-6
Standard Package 3,000
Win Source Part Number 959159-TFM252012ALMAR15MTAA
Ultra Librarian 3D Model Ultra Librarian TFM252012ALMAR15MTAA CAD Model

Description

The TFM252012ALMAR15MTAA is a fixed inductor with a series of TFM-ALMA.

  • Series: TFM-ALMA
  • Type: Thin Film
  • Shielding: Shielded
  • Inductance: 150 nH
  • Package: Tape and Reel
  • Standard Package: 3,000
  • Tolerance: ±20%
  • DC Resistance (DCR): 11mOhm Max
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
