Same model may have multiple batches, images only for reference.

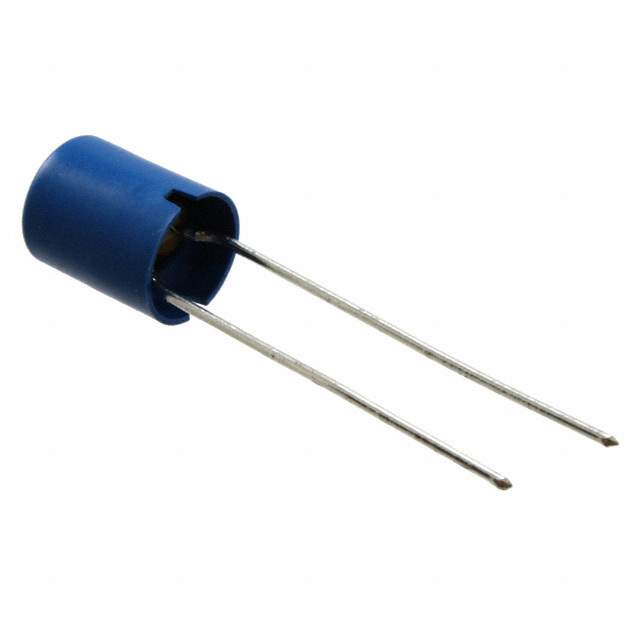

TSL0709RA-4R7M2R6-PF Real Image
Same model may have multiple batches, images only for reference.

TSL0709RA-4R7M2R6-PF

Part No TSL0709RA-4R7M2R6-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.6A 22 MOHM TH
Datasheet
TSL0709RA-4R7M2R6-PF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features 4.7 µH Unshielded - Inductor 2.6 A 22mOhm Max Radial, Vertical Cylinder
Manufacturer TDK Corporation
Series TSL
Package Cut Tape (CT), Tape & Box (TB)
Part Status Obsolete
Operating Temperature Range -20°C ~ 85°C
Mounting Through Hole
Package Radial, Vertical Cylinder
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number TSL0709RA4R7M2R6PF, 445-6508-3, -TSL0709RA-4R7M2R6, 445-6508-1
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 937687-TSL0709RA-4R7M2R6-PF
Ultra Librarian 3D Model Ultra Librarian TSL0709RA-4R7M2R6-PF CAD Model

Description

The TDK Corporation TSL0709RA-4R7M2R6-PF is an obsolete inductor with an inductance of 4.7μH and a maximum current rating of 2.6A.

  • Resistance: 22mOhm (maximum)
  • Temperature Range: -20°C to 85°C
  • Series: TSL
  • Package: radial, vertical cylinder
