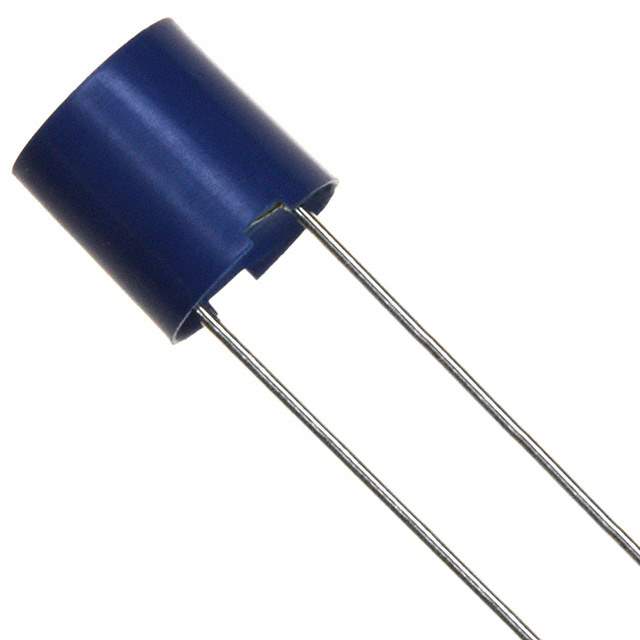

TSL0808RA-220K1R7-PF Real Image
Same model may have multiple batches, images only for reference.

TSL0808RA-220K1R7-PF

Part No TSL0808RA-220K1R7-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 1.7A 70 MOHM TH
Datasheet
TSL0808RA-220K1R7-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 22μH
Tolerance ±10%
Current Rating 1.7A
Current - Saturation 1.7A
DC Resistance (DCR) 70 mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 10MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.346" (8.80mm)
Win Source Part Number 054476-TSL0808RA-220K1R7-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL0808RA-220K1R7-PF CAD Model

Description

The TDK Corporation 054476-TSL0808RA-220K1R7-PF is an inductor with an inductance of 22μH, a current rating of 1.7A, and a DC resistance of 70 mOhm max.

  • Tolerance: ±10%
  • Saturation Current: 1.7A
  • Q @ Freq: 20 @ 2.52MHz
  • Self-Resonant Frequency: 10MHz
  • Mounting: Through a hole
  • Height: 0.346" (8.80mm)
  • Packaging: Ammo package
  • Temperature Range: -20°C to 85°C
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and demand status: Balanced
