Same model may have multiple batches, images only for reference.

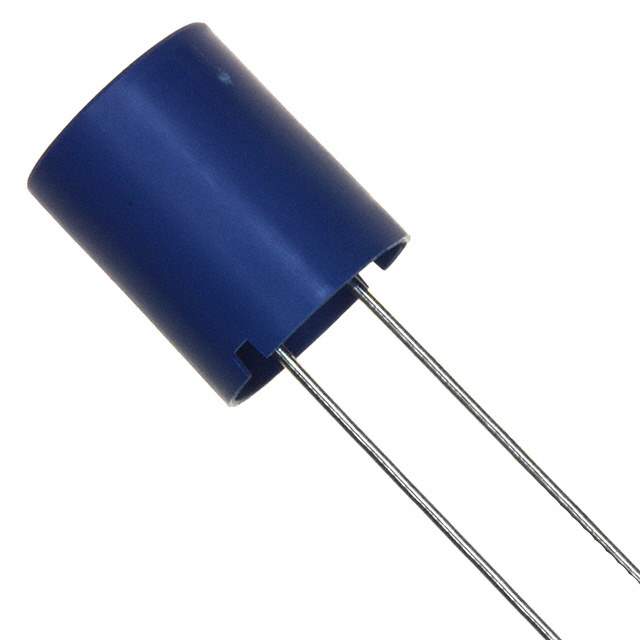

TSL1315RA-103JR24-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-103JR24-PF

Part No TSL1315RA-103JR24-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10MH 240MA 10 OHM TH
Datasheet
TSL1315RA-103JR24-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 10mH
Tolerance ±5%
Current Rating 240mA
Current - Saturation 400mA
DC Resistance (DCR) 10 Ohm Max
Q @ Freq 70 @ 79.6kHz
Frequency - Self Resonant 300kHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122967-TSL1315RA-103JR24-PF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-103JR24-PF CAD Model

Description

TDK Corporation's TSL1315RA-103JR24-PF is a through-hole mounting inductor with a current rating of 240mA and an inductance of 10mH.

  • Mounting: through-hole
  • Current Rating: 240mA
  • Inductance: 10mH
  • Height: 0.669" (17.00mm)
  • Tolerance: ±5%
  • Saturation Current: 400mA
  • Q @ Freq: 70 @ 79.6kHz
  • Self-Resonant Frequency: 300kHz
  • Test Frequency: 1kHz
  • Popularity: medium popularity
  • Status: obsolete (EOL)
