Same model may have multiple batches, images only for reference.

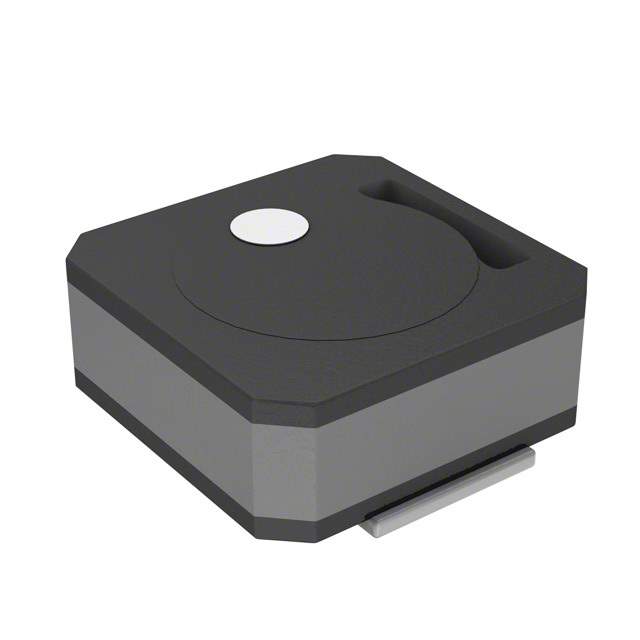

VLCF4018T-150MR59-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF4018T-150MR59-2

Part No VLCF4018T-150MR59-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded)
Datasheet
VLCF4018T-150MR59-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLCF
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating 590mA
Current - Saturation 590mA
Shielding Shielded
DC Resistance (DCR) 268 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Win Source Part Number 1279352-VLCF4018T-150MR59-2
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name VLCF
Introduction Date May 20, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian VLCF4018T-150MR59-2 CAD Model

Description

The TDK Corporation VLCF4018T-150MR59-2 is a wirewound type shielded inductor.

  • Inductance: 15μH
  • Operating Temperature: -40°C to 105°C
  • Current Rating: 590mA
  • Material: Ferrite
  • Current Saturation: 590mA
  • DC Resistance (DCR): 268 mOhm Max
  • Mounting: SMD
  • Tolerance: ±20%
  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Series: VLCF
  • Compliance: Halogen-free
  • Popularity: Medium
  • Estimated EOL Date: 2024
