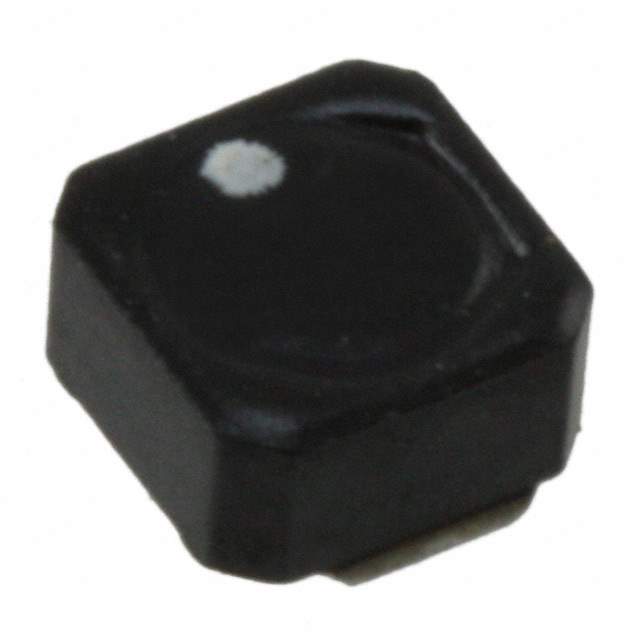

Same model may have multiple batches, images only for reference.

VLCF4024T-150MR80-2

Name: VLCF4024T-150MR80-2
Brand: TDK Corporation
SKU: 799098
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VLCF4024T-150MR80-2
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 15UH 800MA 198 MOHM / Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 1.05A 0.198Ohm DCR 1515 T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Series	VLCF
Packaging	Reel package
Type	Wirewound
Material - Core	Ferrite
Inductance	15μH
Tolerance	±20%
Current Rating	800mA
Current - Saturation	800mA
Shielding	Shielded
DC Resistance (DCR)	198 mOhm Max
Operating Temperature Range	-40°C ~ 105°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Maximum)	0.094" (2.40mm)
Win Source Part Number	799098-VLCF4024T-150MR80-2
Popularity	Medium
Supply and Demand Status	Limited
Family Name	VLCF
Introduction Date	January 01, 2000
ECCN	EAR99
Country of Origin	United States of America
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian VLCF4024T-150MR80-2 CAD Model

Alternative Products

Description

The VLCF4024T-150MR80-2 inductor is a wirewound type manufactured by TDK Corporation.

Series: VLCF
Shielding: Shielded
Inductance: 15μH
DC Resistance (DCR): 198 mOhm Max
Tolerance: ±20%
Operating Temperature: -40°C to 105°C
Current Rating: 800mA
Dimensions: 0.157" L x 0.157" W (4.00mm x 4.00mm)
Mounting: SMD
Core Material: Ferrite
Test Frequency: 100kHz
Maximum Current Saturation: 800mA
Supply and Demand Status: Limited
