Same model may have multiple batches, images only for reference.

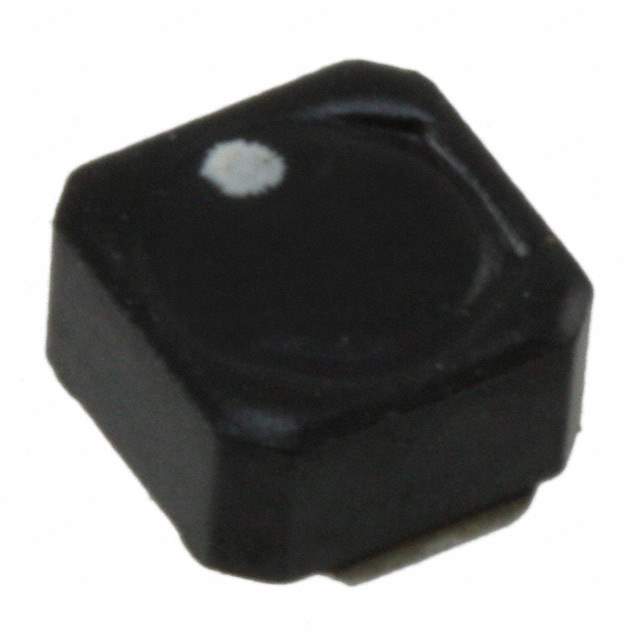

VLCF4024T-220MR65-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF4024T-220MR65-2

Part No VLCF4024T-220MR65-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 650MA 332MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 650 mA 332mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLCF
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 650 mA
Current - Saturation (Isat) 650mA
Shielding Shielded
DC Resistance (DCR) 332mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.094" (2.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-8732-6,445-8732-1,445-8732-2,VLCF4024T220MR652
Standard Package 500
Win Source Part Number 1103916-VLCF4024T-220MR65-2
Ultra Librarian 3D Model Ultra Librarian VLCF4024T-220MR65-2 CAD Model

Description

The TDK Corporation VLCF series inductor is a drum core, wirewound inductor that is shielded.

  • Series: VLCF
  • Core Type: Drum Core, Wirewound
  • Shielding: Shielded
  • Inductance: 22 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 332mOhm Max
  • Current Rating (Amps): 650 mA
  • Height: 0.094" (2.40mm)
  • Package/Case: Nonstandard
  • Operating Temperature: -40°C to 105°C
  • Core Material: Ferrite
  • Mounting: SMD (SMT)
  • Package: Tape & Reel
  • Function: Ideal for use in applications where high reliability and performance are required.
