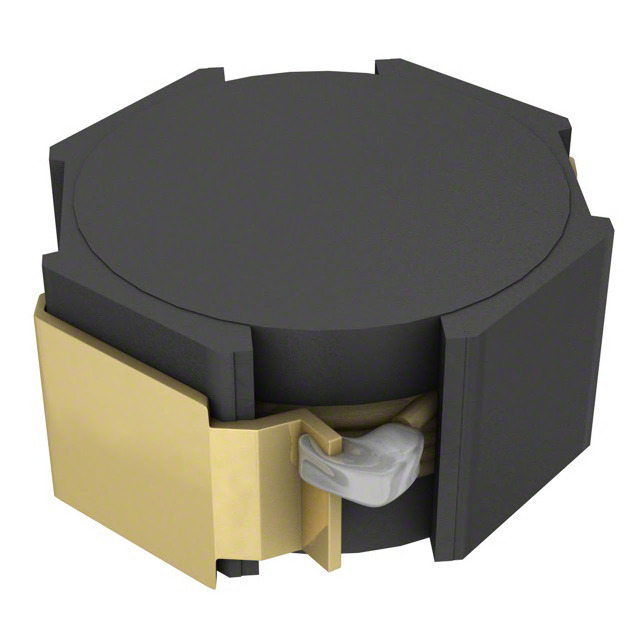

VLF10045T-330M2R3 TDK Corporation VLF10045T-330M2R3 Real Image VLF10045T-330M2R3 label picture
Same model may have multiple batches, images only for reference.
VLF10045T-330M2R3 TDK Corporation VLF10045T-330M2R3 Real Image VLF10045T-330M2R3 label picture
VLF10045T-330M2R3 TDK Corporation VLF10045T-330M2R3 Real Image VLF10045T-330M2R3 label picture
Same model may have multiple batches, images only for reference.

VLF10045T-330M2R3

Part No VLF10045T-330M2R3
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 33UH 2.3A 81 MOHM SMD / SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded)
Datasheet
VLF10045T-330M2R3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 33μH
Tolerance ±20%
Current Rating (Amps) 2.3A
Current - Saturation 2.3A
Shielding Shielded
DC Resistance (DCR) 81mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.394" L x 0.382" W (10.00mm x 9.70mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810013-VLF10045T-330M2R3
Ultra Librarian 3D Model Ultra Librarian VLF10045T-330M2R3 CAD Model

Description

The TDK Corporation VLF10045T-330M2R3 is an electronic component that belongs to the category of wirewound inductors.

  • Shielded: Yes
  • Inductance: 33μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Current Saturation: 2.3A
  • DC Resistance (DCR): 81mOhm Max
  • Obsolete: Yes (End Of Life)
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Temperature Range: -40°C to 105°C
