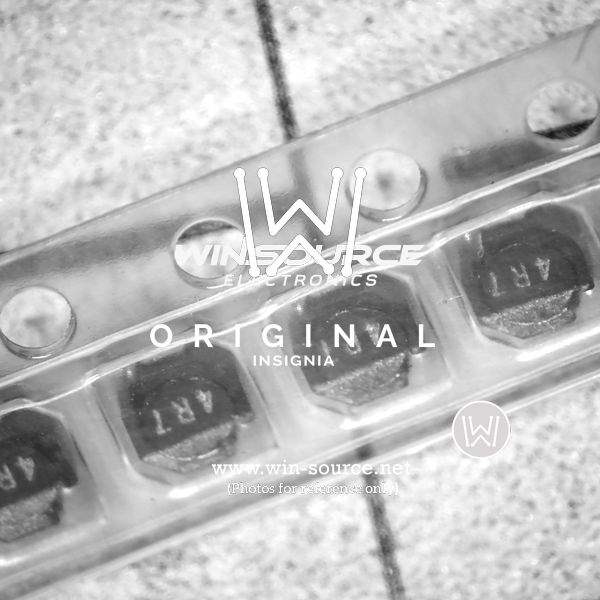

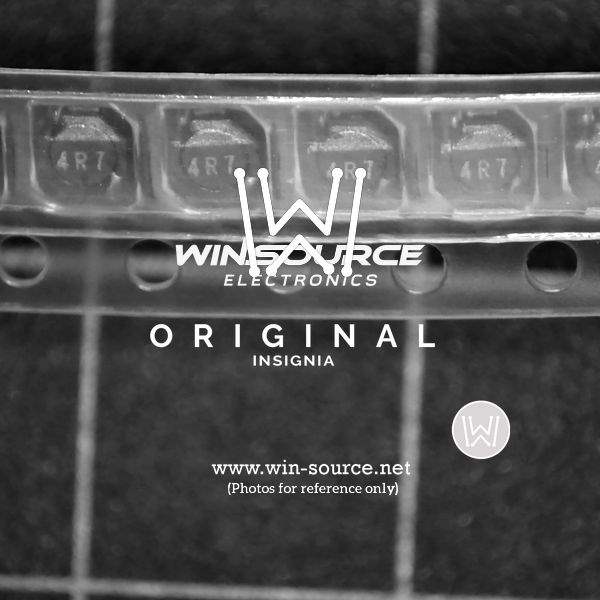

VLF3014AT-4R7MR90 Real Image VLF3014AT-4R7MR90 Real Image1 VLF3014AT-4R7MR90 Real Image2
Same model may have multiple batches, images only for reference.
VLF3014AT-4R7MR90 Real Image VLF3014AT-4R7MR90 Real Image1 VLF3014AT-4R7MR90 Real Image2
VLF3014AT-4R7MR90 Real Image VLF3014AT-4R7MR90 Real Image1 VLF3014AT-4R7MR90 Real Image2
Same model may have multiple batches, images only for reference.

VLF3014AT-4R7MR90

Part No VLF3014AT-4R7MR90
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 900MA 200 MOHM
Datasheet
VLF3014AT-4R7MR90 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 900mA
Current - Saturation 1.2A
DC Resistance (DCR) 200 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.055" (1.40mm)
Win Source Part Number 036320-VLF3014AT-4R7MR90
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLF3014AT-4R7MR90 CAD Model

Description

The TDK VLF3014AT-4R7MR90 is a wirewound inductor designed for use in a range of electronic devices.

  • Current Rating: 900mA
  • Inductance: 4.7μH
  • Material: ferrite
  • Mounting: surface mount mounting
  • Tolerance: ±20%
  • DC Resistance: 200 mOhm Max
  • New Designs: not for new designs
