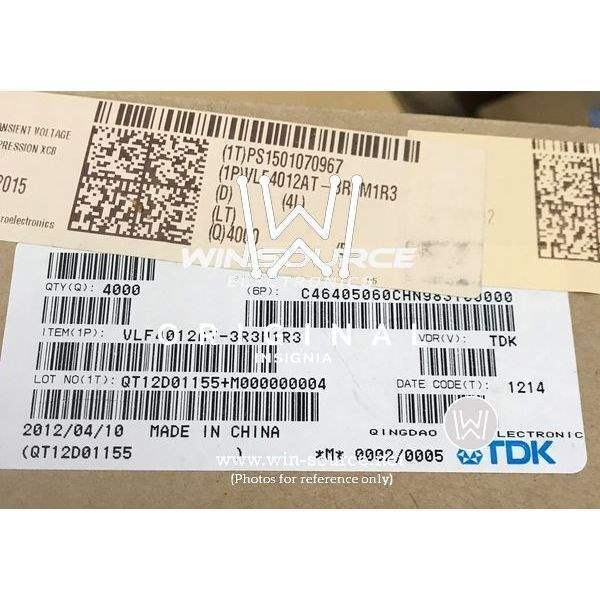

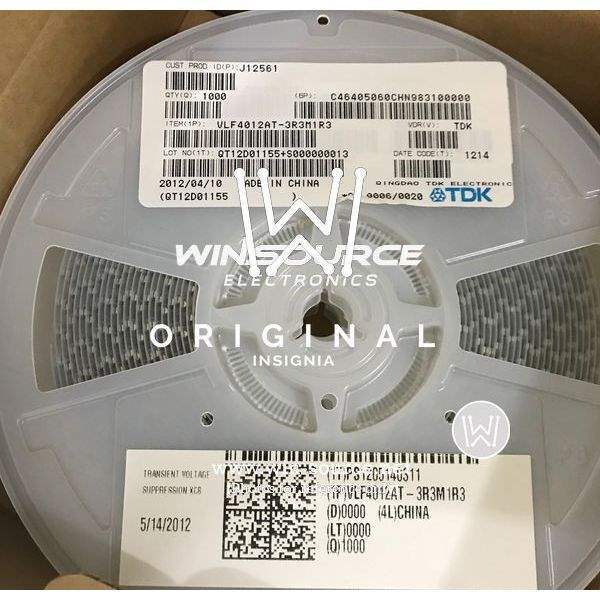

Same model may have multiple batches, images only for reference.

VLF4012AT-3R3M1R3

Part No	VLF4012AT-3R3M1R3
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 1.3A 120 MOHM
Rohs State	Need to verify

Shipping Information

Shipped from	HK warehouse
Expected Shipping Date	Ship today if order in (HKT)
Supplier Lead-Time	Call for availability
Estimate shipping fee	Enter your destination to get a shipping estimate Estimate shipping fee

Pricing & Ordering $0.199

Quantity

Unit Price

Ext. Price

145+

$0.3500

$50.750

350+

$0.2870

$100.450

540+

$0.2780

$150.120

745+

$0.2690

$200.405

965+

$0.2600

$250.900

1,290+

$0.2330

$300.570

* The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Availability: 1,500 pieces

MOQ: 145 pcs

Order Increment : 1 pcs

Qty:

Ordering Guidelines *Need More Quantity? *Request a Bulk Quantity Quotation?

Products specifications

ECAD Module
Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Packaging	Reel - TR
Status	Not For New Designs
Type	Wirewound
Material - Core	Ferrite
Inductance	3.3μH
Tolerance	±20%
Current Rating	1.3A
Current - Saturation	1.3A
DC Resistance (DCR)	120 mOhm Max
Temperature Range - Operating	-40°C to 105°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.047" (1.20mm)
Win Source Part Number	054500-VLF4012AT-3R3M1R3
Family Name	VLF
Introduction Date	May 20, 2002
ECCN	EAR99
Halogen Free	Not Compliant
Estimated EOL Date	Obsolete
Is this a common-used part?	Yes
Popularity	High
Fake Threat In the Open Market	86 pct.
Supply and Demand Status	Sufficient
Alternative Parts (Cross-Reference)	PCD0302MT3R3; CD30D22HF-3R3MC; SCD0302T-3R3M-HF;

Description

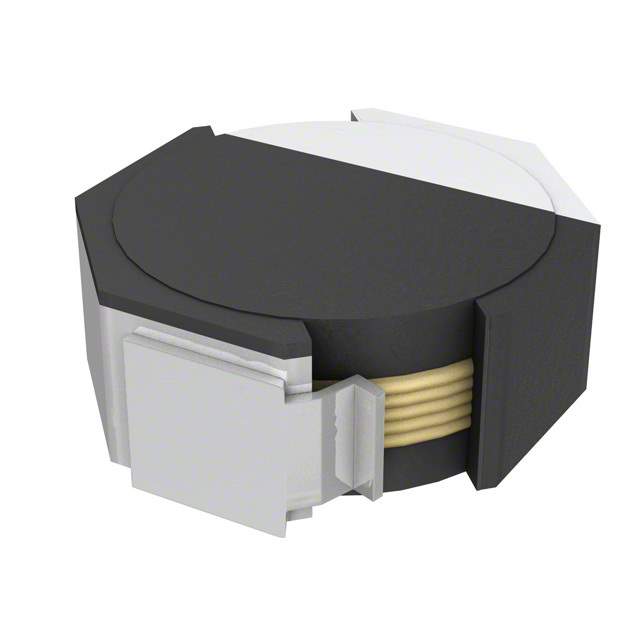

The VLF4012AT-3R3M1R3 is a Ferrite Wirewound inductor, produced by TDK Corporation, assembled in the Reel - TR package. At the 100kHz specified test frequency, it supports a maximum DC resistance of 120 mOhm Max. It is ideal for driving 1.3A current, with the ideal operating temperature of parts ranges from -40°C to 105°C. 3.3μH inductance and ±20% tolerance.
