Same model may have multiple batches, images only for reference.

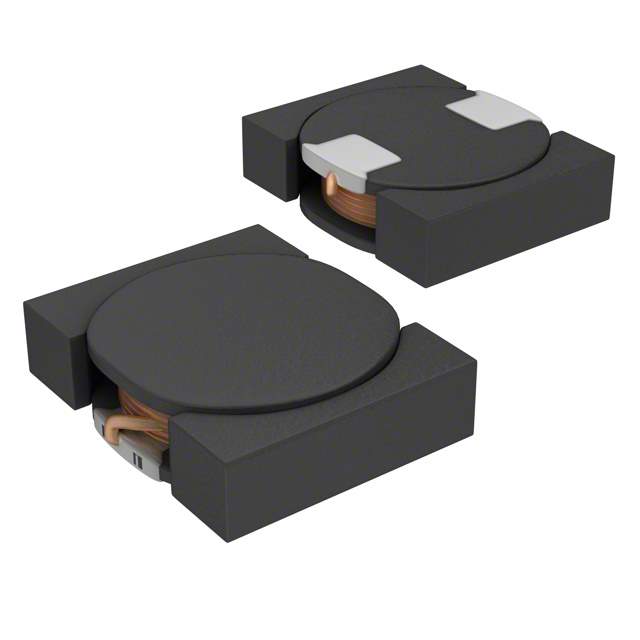

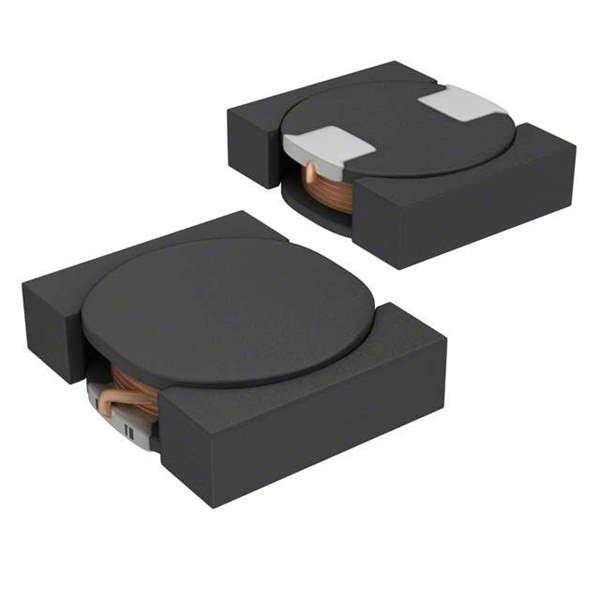

VLF403210MT-220M Real Image
Same model may have multiple batches, images only for reference.

VLF403210MT-220M

Part No VLF403210MT-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 680MA 720MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 680 mA 720mOhm Max Nonstandard
Datasheet
VLF403210MT-220M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLF-M
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 680 mA
Current - Saturation (Isat) 460mA
Shielding Shielded
DC Resistance (DCR) 720mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-17125-ND,VLF403210MT-220M-ND,445-17125-6,445-17125-2,445-17125-1
Standard Package 1,000
Win Source Part Number 1165255-VLF403210MT-220M
Ultra Librarian 3D Model Ultra Librarian VLF403210MT-220M CAD Model

Description

The TDK Corporation 1165255-VLF403210MT-220M is a drum core, wirewound inductor that belongs to the category of inductors, coils, and chokes.

  • Manufacturer: TDK Corporation
  • Type: Drum core, wirewound inductor
