Same model may have multiple batches, images only for reference.

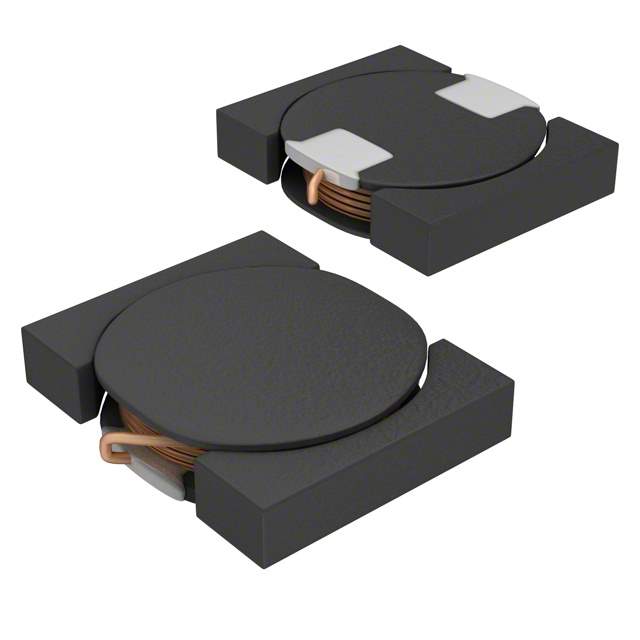

VLF504010MT-R68N Real Image
Same model may have multiple batches, images only for reference.

VLF504010MT-R68N

Part No VLF504010MT-R68N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 680NH 3.71A 30 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 680nH
Tolerance ±30%
Current Rating (Amps) 3.71A
Current - Saturation 3.4A
Shielding Shielded
DC Resistance (DCR) 30mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806850-VLF504010MT-R68N
Ultra Librarian 3D Model Ultra Librarian VLF504010MT-R68N CAD Model

Description

{"ProductId":745431,"FormattedDescription":"

The TDK Corporation VLF504010MT-R68N is a wirewound inductor with a shielded type and has an inductance of 680nH.

  • Inductance: 680nH
  • Tolerance: ±30%
  • DC Resistance: 30mOhm max
  • Current Saturation: 3.4A
  • Height: 0.039" (1.00mm)
  • Packaging: Nonstandard
  • Dimensions: 0.197" L x 0.157" W (5.00mm x 4.00mm)
"}
