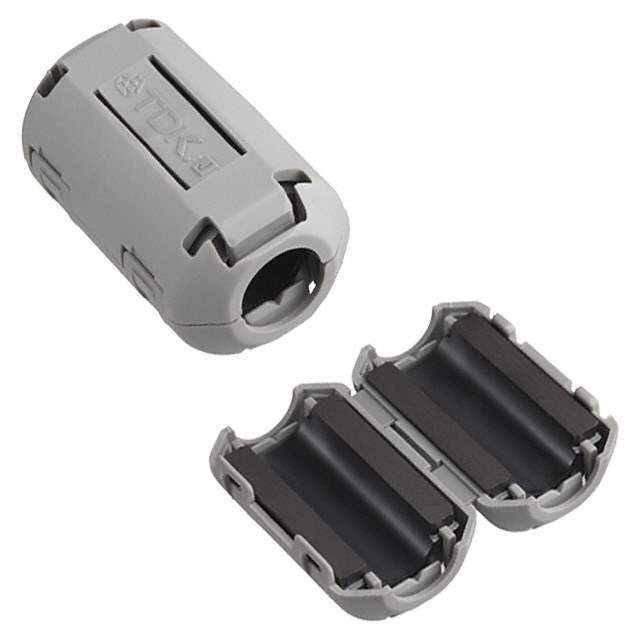

ZCAT2235-1030A Real Image
Same model may have multiple batches, images only for reference.

ZCAT2235-1030A

Part No ZCAT2235-1030A
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 100 OHM HINGED 10MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Status Active
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 100 Ohm @ 100MHz to 500MHz
Material 30
Inner Dimension 0.394" Dia (10.00mm)
Outer Dimension 0.787" W x 0.846" H (20.00mm x 21.50mm)
Mounting Free Hanging
Length 1.378" (35.00mm)
Win Source Part Number 054555-ZCAT2235-1030A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian ZCAT2235-1030A CAD Model

Description

The TDK ZCAT2235-1030A is a ferrite core designed for use in EMI/RFI noise suppression applications.

  • Impedance: 100 ohms @ frequencies ranging from 100MHz to 500MHz
  • Design: Hinged design
  • Compact Size: Outer dimension of 0.787" W x 0.846" H (20.00mm x 21.50mm)
  • Application: Ideal choice for applications with limited space
  • Effectiveness: Highly effective option for EMI/RFI noise suppression applications
