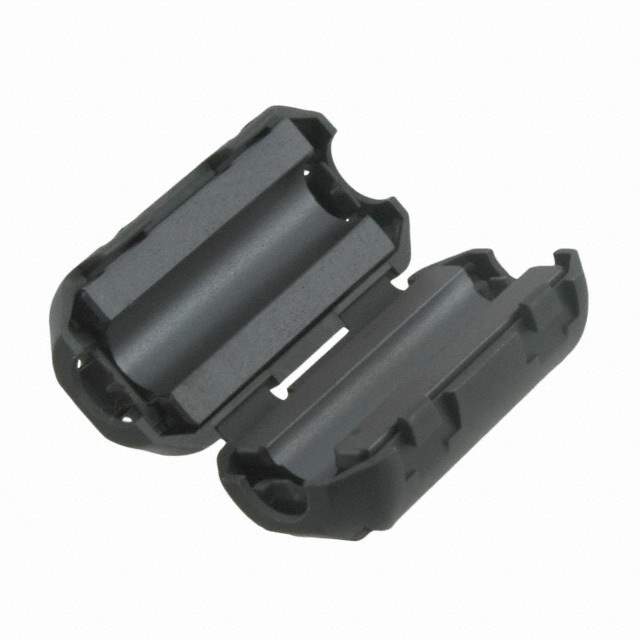

ZCAT1325-0530A-BK Real Image
Same model may have multiple batches, images only for reference.

ZCAT1325-0530A-BK

Part No ZCAT1325-0530A-BK
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 100 OHM HINGED 5MM
Datasheet
ZCAT1325-0530A-BK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Status Active
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 100 Ohm @ 100MHz to 500MHz
Material 30
Inner Dimension 0.197" Dia (5.00mm)
Outer Dimension 0.440" W x 0.504" H (11.20mm x 12.80mm)
Mounting Free Hanging
Length 0.984" (25.00mm)
Win Source Part Number 091887-ZCAT1325-0530A-BK
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1,344
Ultra Librarian 3D Model Ultra Librarian ZCAT1325-0530A-BK CAD Model

Description

The ZCAT1325-0530A-BK is a round filter from TDK Corporation.

  • Length: 0.984" (25.00mm)
  • Mounting: Free hanging
  • Material: 30
  • Impedance @ Frequency: 100 Ohm @ 100MHz to 500MHz
  • Design: Hinged (snap on)
  • Inner Dimension: 0.197" Dia (5.00mm)
  • Outer Dimension: 0.440" W x 0.504" H (11.20mm x 12.80mm)
  • Supply and Demand Status: Balanced
  • Quantity per Package: 1,344 pcs
