Same model may have multiple batches, images only for reference.

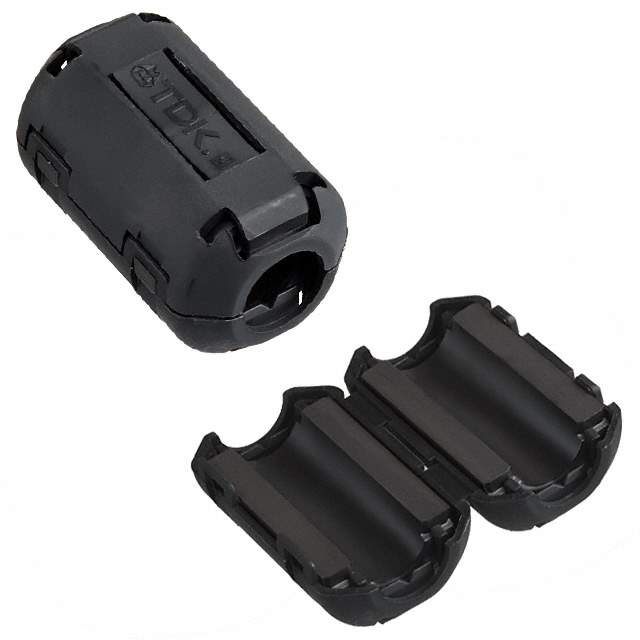

ZCAT2235-1030A-BK Real Image
Same model may have multiple batches, images only for reference.

ZCAT2235-1030A-BK

Part No ZCAT2235-1030A-BK
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 100 OHM HINGED 10MM
Datasheet
ZCAT2235-1030A-BK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Status Active
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 100 Ohm @ 100MHz to 500MHz
Material 30
Inner Dimension 0.394" Dia (10.00mm)
Outer Dimension 0.787" W x 0.846" H (20.00mm x 21.50mm)
Mounting Free Hanging
Length 1.378" (35.00mm)
Win Source Part Number 054557-ZCAT2235-1030A-BK
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Communications & Networking, Audio, Computers & Computer Peripherals, System Monitoring
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian ZCAT2235-1030A-BK CAD Model

Description

The TDK Corporation ZCAT2235-1030A-BK is a round type filter with a length of 1.378 inches (35.00mm) and a mounting style of free hanging.

  • Impedance: 100 Ohm @ frequencies ranging from 100MHz to 500MHz
  • Design: Hinged (snap-on) mechanism
  • Inner Dimension: 0.394 inches (10.00mm) diameter
  • Outer Dimension: 0.787 inches width by 0.846 inches height (20.00mm x 21.50mm)
  • Material: 30 material
  • Applications: Communications and networking, audio, computers and computer peripherals, and system monitoring
  • Package Contains: 400 pieces
