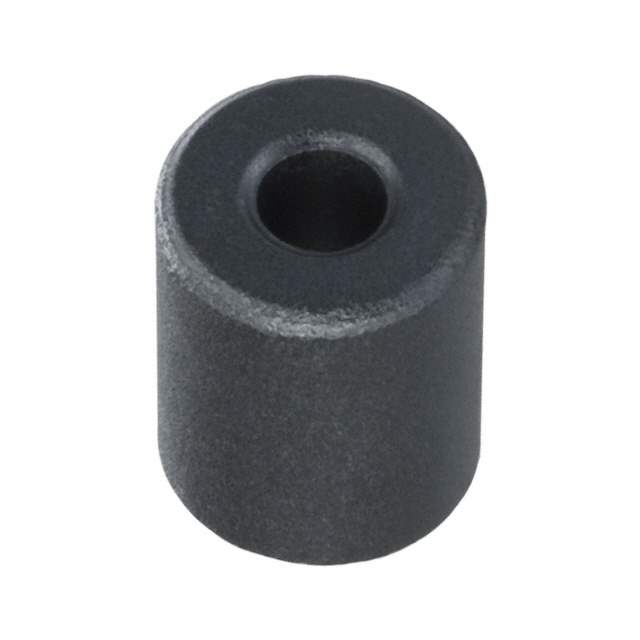

28B0315-100

Part No 28B0315-100
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 158 OHM SOLID
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Status Active
Type Round
Design Solid
Impedance @ Frequency 158 Ohm @ 100MHz
Material 28
Inner Dimension 0.125" Dia (3.17mm)
Outer Dimension 0.315" Dia (8.00mm)
Mounting Free Hanging
Length 0.396" (10.06mm)
Win Source Part Number 1003656-28B0315-100
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 28B0315-100 CAD Model

Description

The Laird-Signal Integrity Products 1003656-28B0315-100 is a solid filter with a 158 Ohm impedance @ 100MHz frequency.

  • Type: Solid Filter
  • Impedance: 158 Ohm @ 100MHz
  • Length: 0.396" (10.06mm)
  • Mounting Type: Free Hanging
  • Material: 28
  • Inner Dimension: 0.125" Dia (3.17mm)
  • Outer Dimension: 0.315" Dia (8.00mm)
  • Application: Filters
  • Popularity: Medium
  • Supply and Demand Status: Balance
