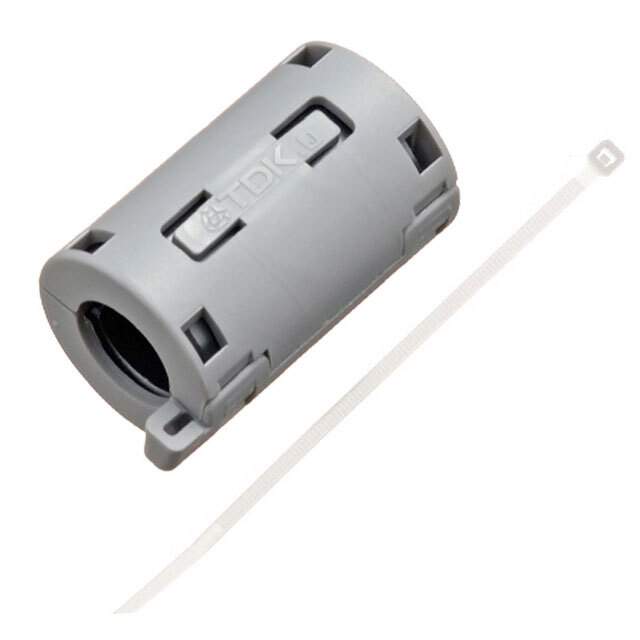

ZCAT2132-1130 Real Image
Same model may have multiple batches, images only for reference.

ZCAT2132-1130

Part No ZCAT2132-1130
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description Clamp Filters For Cable
Datasheet
ZCAT2132-1130 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Series ZCAT
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 80 Ohm @ 100MHz ~ 500MHz
Material 30
Inner Dimension 0.433" Dia (11.00mm)
Outer Dimension 0.807" Dia (20.50mm)
Mounting Chassis Mount
Length 1.417" (36.00mm)
Win Source Part Number 1282853-ZCAT2132-1130
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, System Monitoring, Audio, Imaging, Video & Vision, Communications & Networking, Consumer Electronics, Portable Devices
Family Name ZCAT
Introduction Date October 31, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Quantity per package 480
Ultra Librarian 3D Model Ultra Librarian ZCAT2132-1130 CAD Model

Description

The ZCAT2132-1130 is a round type filter manufactured by TDK Corporation.

  • Type: hinged (snap on) chassis mount
  • Impedance: 80 Ohm @ 100MHz ~ 500MHz
  • Inner Dimension: 0.433" Dia (11.00mm)
  • Outer Dimension: 0.807" Dia (20.50mm)
  • Series: ZCAT
  • Applications: computers & computer peripherals, system monitoring, audio, imaging, video & vision, communications & networking, consumer electronics, and portable devices
  • Win Source part number: 1282853-ZCAT2132-1130
