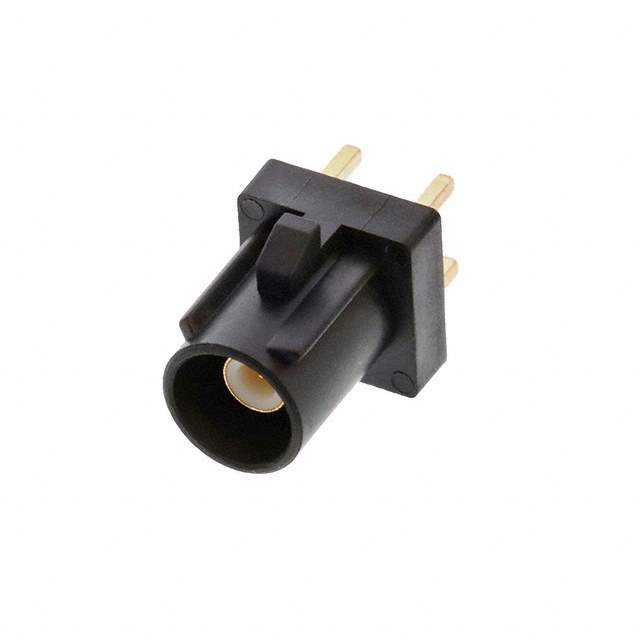

RF55-28A-T-00-50-G-SH Real Image
Same model may have multiple batches, images only for reference.

RF55-28A-T-00-50-G-SH

Part No RF55-28A-T-00-50-G-SH
Manufacturer Adam Technologies, Inc.
Catalog Coaxial Connectors (RF)
Description CONN SMB PLUG PCB 50OHM SOLDER / SMB, Fakra Connector Plug, Male Pin 50Ohm Through Hole Solder
Datasheet
RF55-28A-T-00-50-G-SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Adam Tech
Series RF
Package Tray
Connector Style SMB, Fakra
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Locking Ramp
Frequency - Max 4 GHz
Number of Ports 1
Features Code A
Housing Color Black
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -40°C ~ 85°C
Base Product Number RF55-28
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 2057-RF55-28A-T-00-50-G-SH
Standard Package 100
Win Source Part Number 1116336-RF55-28A-T-00-50-G-SH
Ultra Librarian 3D Model Ultra Librarian RF55-28A-T-00-50-G-SH CAD Model

Description

The Adam Tech RF Connector is a high-quality connector that is perfect for use in coaxial connections.

  • Package: tray package
  • Standard Package: 100
  • Connector Type: male pin plug
  • Fastening Type: locking ramp
  • Frequency Maximum: 4 GHz
  • Impedance: 50 Ohm
  • Material: brass
  • Housing Color: black
  • Body Finish: gold
  • Center Contact Plating: gold
  • Temperature Range: -40°C to 85°C
