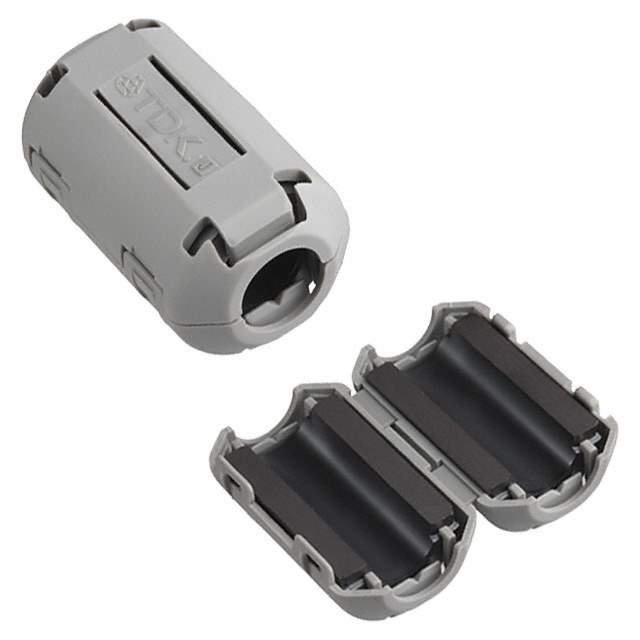

ZCAT2436-1330A Real Image
Same model may have multiple batches, images only for reference.

ZCAT2436-1330A

Part No ZCAT2436-1330A
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 80 OHM HINGED 13MM
Datasheet
ZCAT2436-1330A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Status Active
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 80 Ohm @ 100MHz to 500MHz
Material 30
Inner Dimension 0.512" Dia (13.00mm)
Outer Dimension 0.866" W x 0.925" H (22.00mm x 23.50mm)
Mounting Free Hanging
Length 1.417" (36.00mm)
Win Source Part Number 036696-ZCAT2436-1330A
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Communications & Networking, Audio, Computers & Computer Peripherals, System Monitoring
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian ZCAT2436-1330A CAD Model

Description

The TDK ZCAT2436-1330A is a round ferrite bead filter that has a length of 1.417" (36.00mm) and an impedance of 80 Ohm @ 100MHz to 500MHz.

  • Design: Hinged design and can be easily snapped on for mounting
  • Inner Dimension: 0.512" Dia (13.00mm)
  • Outer Dimension: 0.866" W x 0.925" H (22.00mm x 23.50mm)
  • Applications: Used in communications and networking, audio, computers and computer peripherals, and system monitoring
  • Family: Part of the Filters family
  • Popularity: Medium popularity
  • Package: Each package contains 400 ferrite bead filters
