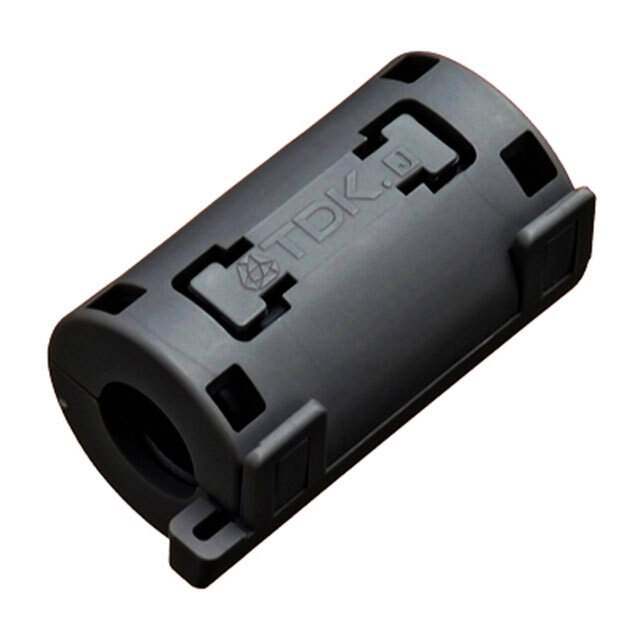

ZCAT2032-0930 Real Image
Same model may have multiple batches, images only for reference.

ZCAT2032-0930

Part No ZCAT2032-0930
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description Clamp Filters For Cable
Datasheet
ZCAT2032-0930 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Series ZCAT
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 100 Ohm @ 100MHz ~ 500MHz
Material 30
Inner Dimension 0.354" Dia (9.00mm)
Outer Dimension 0.768" Dia (19.50mm)
Mounting Free Hanging
Length 1.417" (36.00mm)
Win Source Part Number 1282852-ZCAT2032-0930
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Balance
Family Name ZCAT
Introduction Date October 31, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Quantity per package 420
Ultra Librarian 3D Model Ultra Librarian ZCAT2032-0930 CAD Model

Description

The ZCAT2032-0930 is a round type filter designed by TDK Corporation.

  • Type: Round
  • Impedance: 100 Ohm @ 100MHz to 500MHz
  • Length: 1.417" (36.00mm)
  • Outer Dimension: 0.768" Dia (19.50mm)
  • Type: Hinged (Snap On)
  • Inner Dimension: 0.354" Dia (9.00mm)
  • Material: 30
  • Series: ZCAT
  • ECCN: EAR99
  • Country of Origin: China
  • Popularity: Medium
  • Expected Availability: 2024
  • Supply and Demand: Balance
  • Package: 420
