Same model may have multiple batches, images only for reference.

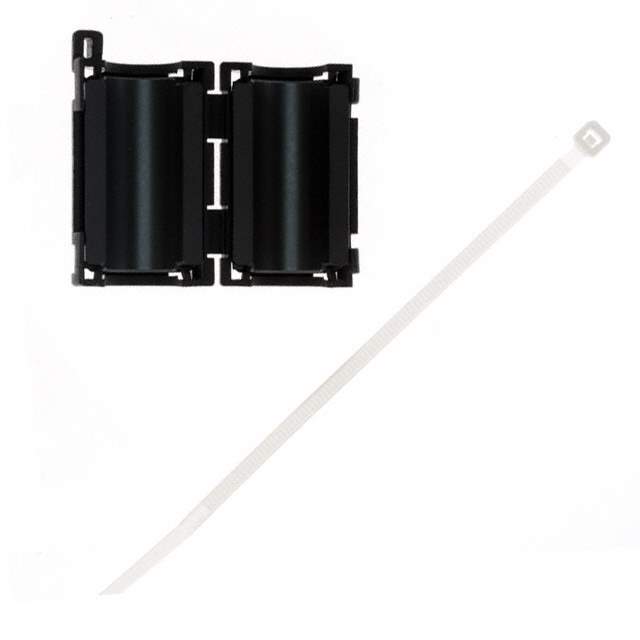

ZCAT2132-1130-BK Real Image
Same model may have multiple batches, images only for reference.

ZCAT2132-1130-BK

Part No ZCAT2132-1130-BK
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 80 OHM HINGED 11MM
Datasheet
ZCAT2132-1130-BK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Status Active
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 80 Ohm @ 100MHz to 500MHz
Material 30
Inner Dimension 0.433" Dia (11.00mm)
Outer Dimension 0.807" Dia (20.50mm)
Mounting Chassis Mount
Length 1.417" (36.00mm)
Win Source Part Number 054554-ZCAT2132-1130-BK
Popularity Medium
Supply and Demand Status Balance
Quantity per package 480
Ultra Librarian 3D Model Ultra Librarian ZCAT2132-1130-BK CAD Model

Description

The TDK Corporation ZCAT2132-1130-BK is a round chassis mount filter that is designed to offer 80 Ohm impedance @ a frequency range of 100 MHz to 500 MHz.

  • Inner Dimension: 0.433 inches
  • Outer Dimension: 0.807 inches
  • Design: Hinged design
  • Material: High-quality 30 material
  • Suitable Use: Suitable for use in various electronic applications, including power supplies, telecommunications, and automotive systems
  • Package Quantity: 480 filters
  • Supply and Demand Status: Balanced
