Same model may have multiple batches, images only for reference.

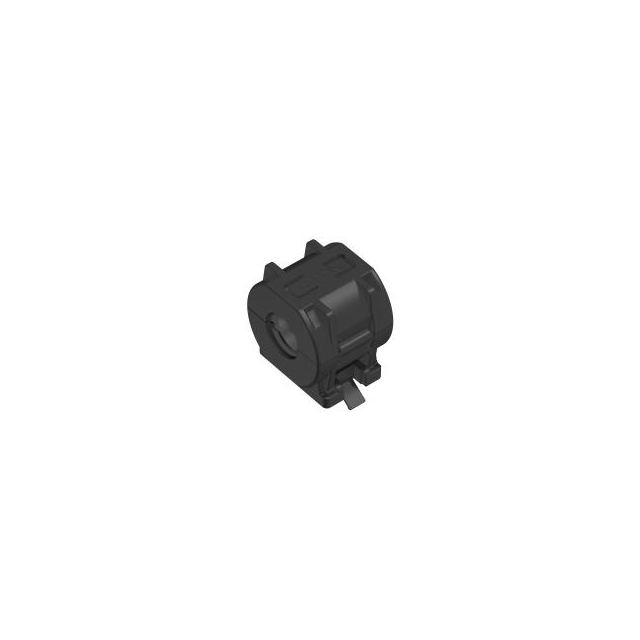

ZCAT2017-0930B-BK Real Image
Same model may have multiple batches, images only for reference.

ZCAT2017-0930B-BK

Part No ZCAT2017-0930B-BK
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 50 OHM HINGED 9MM
Datasheet
ZCAT2017-0930B-BK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Status Active
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 50 Ohm @ 100MHz to 500MHz
Material 30
Inner Dimension 0.354" Dia (9.00mm)
Outer Dimension 1.142" W x 0.787" H (29.00mm x 20.00mm)
Mounting Chassis Mount
Length 0.827" (21.00mm)
Win Source Part Number 054552-ZCAT2017-0930B-BK
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, System Monitoring, Communications & Networking, Audio, Industrial
Quantity per package 350
Ultra Librarian 3D Model Ultra Librarian ZCAT2017-0930B-BK CAD Model

Description

The TDK Corporation 054552-ZCAT2017-0930B-BK is a round type filter designed for use in computers and computer peripherals, system monitoring, communications and networking, audio, and industrial applications.

  • Length: 0.827" (21.00mm)
  • Mounting: Chassis mount
  • Material: 30
  • Impedance @ Frequency: 50 Ohm @ 100MHz to 500MHz
  • Design: Hinged (snap on)
  • Inner Dimension: 0.354" Dia (9.00mm)
  • Outer Dimension: 1.142" W x 0.787" H (29.00mm x 20.00mm)
  • Categories: Filters
  • Status: Active
  • Supply and Demand Status: Balance
  • Quantity per Package: 350
