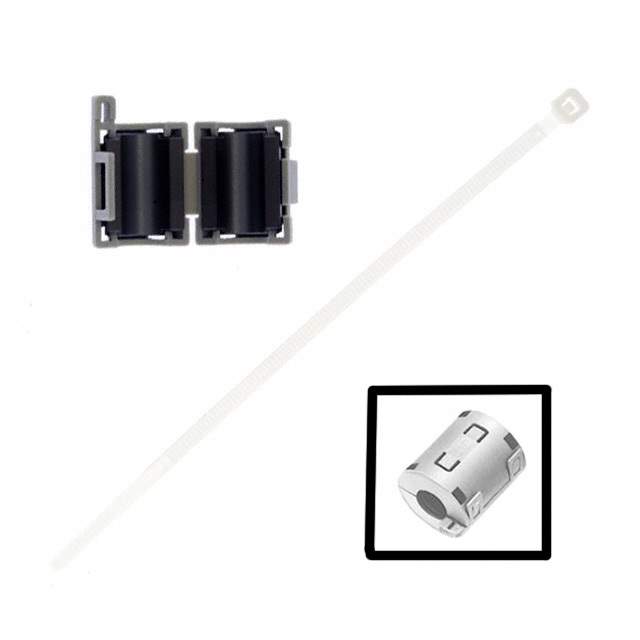

ZCAT1518-0730 Real Image
Same model may have multiple batches, images only for reference.

ZCAT1518-0730

Part No ZCAT1518-0730
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 50 OHM HINGED 7MM
Datasheet
ZCAT1518-0730 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Status Active
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 50 Ohm @ 100MHz to 500MHz
Material 30
Inner Dimension 0.276" Dia (7.00mm)
Outer Dimension 0.591" Dia (15.00mm)
Mounting Chassis Mount
Length 0.866" (22.00mm)
Win Source Part Number 036693-ZCAT1518-0730
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, System Monitoring, Communications & Networking, Audio, Industrial
Quantity per package 896
Ultra Librarian 3D Model Ultra Librarian ZCAT1518-0730 CAD Model

Description

The TDK Corporation ZCAT1518-0730 is a round type chassis mount filter that is commonly used in computers and computer peripherals, system monitoring, communications and networking, audio, and industrial applications.

  • Supply and Demand Status: Balanced
  • Component Status: Active electronic component
  • Win Source Part Number: 036693-ZCAT1518-0730
  • Impedance: 50 Ohm @ 100MHz to 500MHz
  • Inner Dimension: 0.276" Dia (7.00mm)
  • Outer Dimension: 0.591" Dia (15.00mm)
