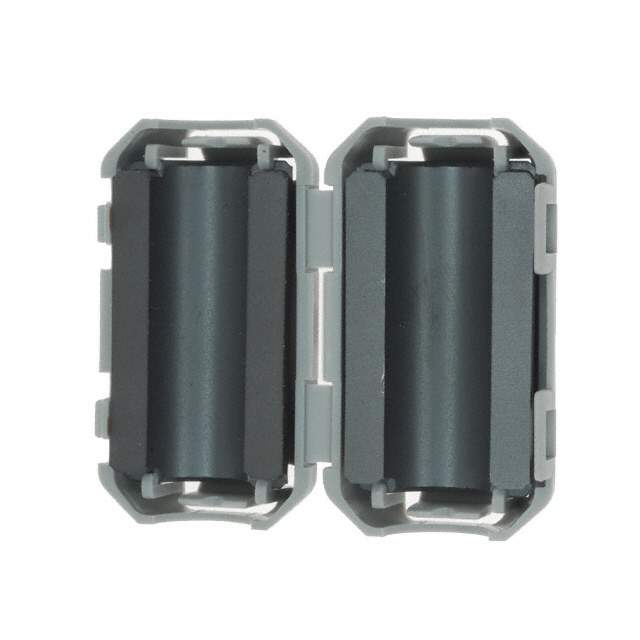

ZCAT2035-0930A Real Image
Same model may have multiple batches, images only for reference.

ZCAT2035-0930A

Part No ZCAT2035-0930A
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 100 OHM HINGED 9MM
Datasheet
ZCAT2035-0930A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Status Active
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 100 Ohm @ 100MHz to 500MHz
Material 30
Inner Dimension 0.354" Dia (9.00mm)
Outer Dimension 0.685" W x 0.768" H (17.40mm x 19.50mm)
Mounting Free Hanging
Length 1.378" (35.00mm)
Win Source Part Number 091708-ZCAT2035-0930A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Consumer Electronics, Portable Devices
Family Name ZCAT
Introduction Date October 31, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Quantity per package 480
Ultra Librarian 3D Model Ultra Librarian ZCAT2035-0930A CAD Model

Description

The TDK Corporation ZCAT2035-0930A snap-on ferrite core is a round-shaped filter with an impedance of 100 Ohm @ 100MHz to 500MHz.

  • Inner Dimension: 0.354 inches (9.00mm)
  • Outer Dimension: 0.685 inches width x 0.768 inches height (17.40mm x 19.50mm)
  • Length: 1.378 inches (35.00mm)
  • Design: Hinged design suitable for free hanging mounting
  • Material: 30 material
  • Compliance: Compliant with RoHS standards
  • Suitable Use: Suitable for use in industrial, consumer electronics, and portable devices
  • Market Popularity: High popularity in the market
  • Package Quantity: 480
  • ECCN: EAR99
