Same model may have multiple batches, images only for reference.

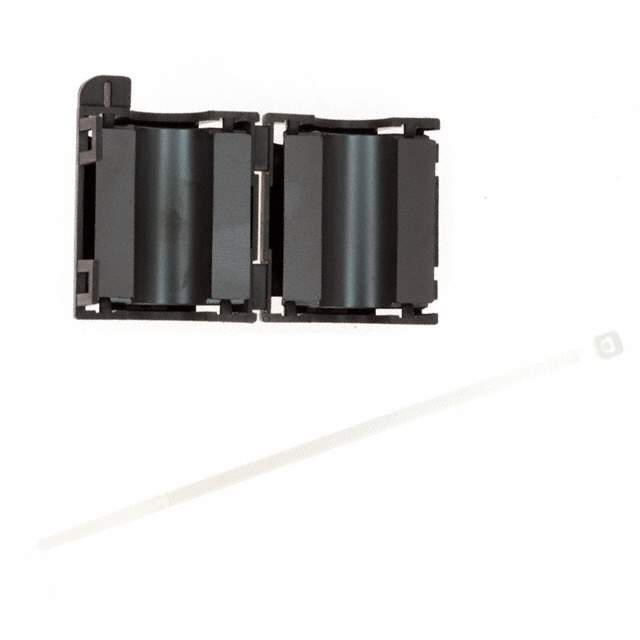

ZCAT1518-0730-BK Real Image
Same model may have multiple batches, images only for reference.

ZCAT1518-0730-BK

Part No ZCAT1518-0730-BK
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description FERRITE CORE 50 OHM HINGED 7MM
Datasheet
ZCAT1518-0730-BK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Status Active
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 50 Ohm @ 100MHz to 500MHz
Material 30
Inner Dimension 0.276" Dia (7.00mm)
Outer Dimension 0.591" Dia (15.00mm)
Mounting Chassis Mount
Length 0.866" (22.00mm)
Win Source Part Number 054547-ZCAT1518-0730-BK
Popularity Medium
Supply and Demand Status Balance
Quantity per package 896
Ultra Librarian 3D Model Ultra Librarian ZCAT1518-0730-BK CAD Model

Description

The TDK Corporation ZCAT1518-0730-BK is a round type filter with a length of 0.866 inches (22.00mm) and a mounting type of chassis mount.

  • Material: 30
  • Impedance: 50 Ohm @ a frequency range of 100MHz to 500MHz
  • Design: Hinged (snap on)
  • Inner Dimension: 0.276 inches (7.00mm)
  • Outer Dimension: 0.591 inches (15.00mm)
  • Category: Filters
  • Status: Active in the market
  • Quantity per Package: 896
