Same model may have multiple batches, images only for reference.

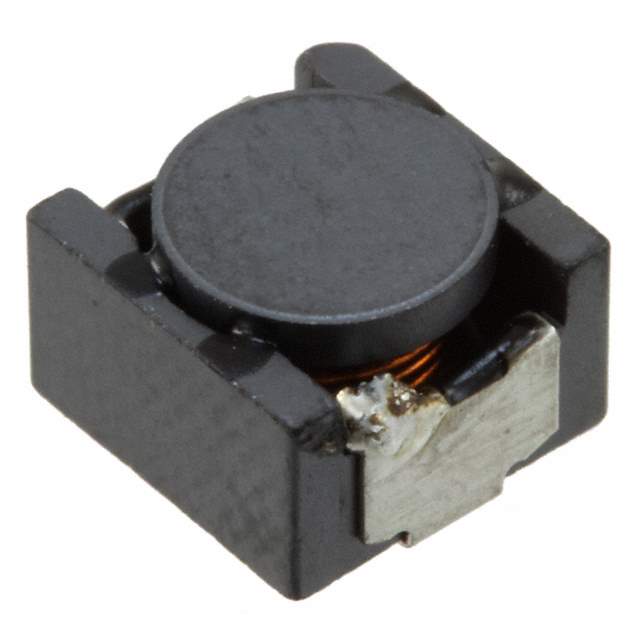

RLF7045T-220M1R4-D Real Image
Same model may have multiple batches, images only for reference.

RLF7045T-220M1R4-D

Part No RLF7045T-220M1R4-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 1.4A 98.4MOHM SMD
Datasheet
RLF7045T-220M1R4-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features Shielded Wirewound Inductor 98.4mOhm Max Nonstandard
Manufacturer TDK Corporation
Series RLF-D
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 150°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number RLF7045T-220M1R4-D-ND, 445-16656-1, 445-16656-2, 445-16656-6
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 932236-RLF7045T-220M1R4-D
Ultra Librarian 3D Model Ultra Librarian RLF7045T-220M1R4-D CAD Model

Description

The TDK Corporation RLF-D series is a shielded wirewound inductor with a maximum resistance of 98.4mOhm.

  • Series: RLF-D series
  • Type: Shielded wirewound inductor
  • Maximum Resistance: 98.4mOhm
  • Package: Nonstandard
  • Mounting: Surface
  • Operating Temperature Range: -40°C to 150°C
  • Lifecycle: Not recommended for new designs
  • Category: Inductors
  • ECCN: EAR99
  • Popularity: High
  • REACH: Unaffected
  • HTSUS code: 8504.50.4000
  • Quantity per reel: 1000 units
