Same model may have multiple batches, images only for reference.

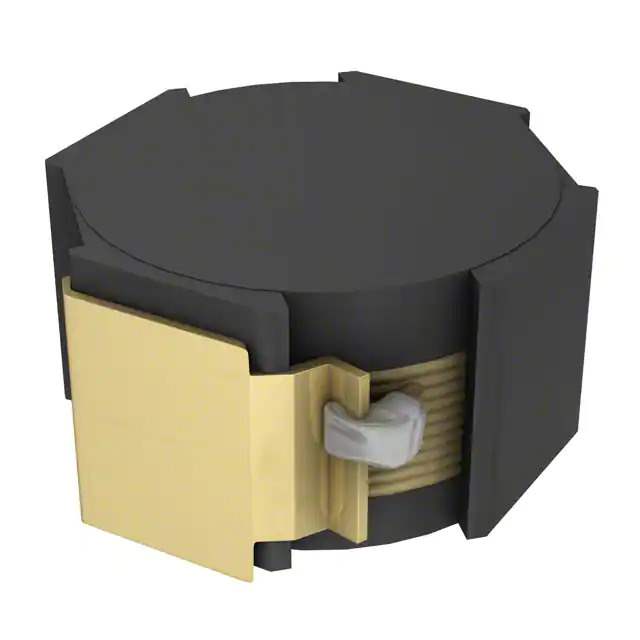

VLF12060T-1R8N120 Real Image
Same model may have multiple batches, images only for reference.

VLF12060T-1R8N120

Part No VLF12060T-1R8N120
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.8UH 12A 4.4 MOHM SMD / 1.8 μH Shielded Drum Core, Wirewound Inductor 12 A 4.4mOhm Max Nonstandard
Datasheet
VLF12060T-1R8N120 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series VLF
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.8 µH
Tolerance ±30%
Current Rating (Amps) 12 A
Current - Saturation (Isat) 14.6A
Shielding Shielded
DC Resistance (DCR) 4.4mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.461" W (12.00mm x 11.70mm)
Height - Seated (Max) 0.236" (6.00mm)
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 902613-VLF12060T-1R8N120
Ultra Librarian 3D Model Ultra Librarian VLF12060T-1R8N120 CAD Model

Description

The 902613-VLF12060T-1R8N120 is a fixed inductor from the VLF series.

  • Features: drum core and wirewound construction
  • Package: shielded
  • Packaging: tape and reel
  • Size (L x W): 0.472" L x 0.461" W (12.00mm x 11.70mm)
  • Height: 0.236" (6.00mm)
  • Inductance: 1.8µH
  • Tolerance: ±30%
  • Operating Temperature Range: -40°C to 105°C
  • Manufacturer: TDK Corporation
  • Status: obsolete
  • Category: inductors, coils, and chokes
