Same model may have multiple batches, images only for reference.

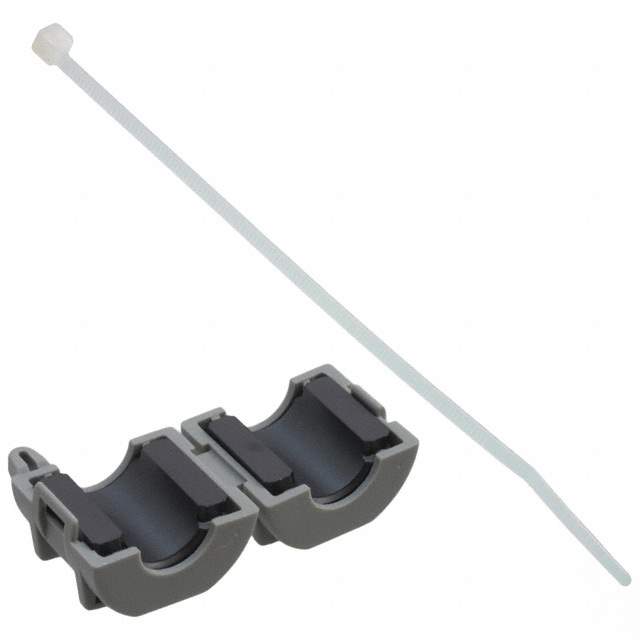

ZCAT2017-0930 Real Image
Same model may have multiple batches, images only for reference.

ZCAT2017-0930

Part No ZCAT2017-0930
Manufacturer TDK Corporation
Catalog Ferrite Cores - Cables and Wiring
Description Ferrite Core Clamp Core 30-Material / Clamp Filters For Cable | FERRITE CORE 50 OHM HINGED 9MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Type Round
Design Hinged (Snap On)
Impedance at Frequency 50Ohm at 100MHz ~ 500MHz
Material 30
Inner Dimension 0.354" Dia (9.00mm)
Outer Dimension 0.787" Dia (20.00mm)
Mounting Style Chassis Mount
Length 0.827" (21.00mm)
Manufacturer Pack Quantity 640
MSL Level 1 (Unlimited)
Win Source Part Number 1282851-ZCAT2017-0930
Manufacturer Homepage www.tdk.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, System Monitoring, Communications & Networking, Audio, Industrial
Family Name ZCAT
Introduction Date October 31, 2000
ECCN EAR99
Country of Origin China, Japan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ZCAT2017-0930 CAD Model

Description

The TDK Corporation ZCAT2017-0930 is a compliant round chassis mount filter that is used in computers and computer peripherals, system monitoring, communications and networking, audio, and industrial applications.

  • Type: Compliant Round Filter
  • Applications: Computers/Peripherals, System Monitoring, Communications/Networking, Audio, Industrial
  • Mounting Type: Chassis Mount
  • Shape: Hinged (Snap On)
  • Inner Dimension: 0.354" Dia (9.00mm)
  • Outer Dimension: 0.787" Dia (20.00mm)
  • Length: 0.827" (21.00mm)
  • Material: 30
  • Family: ZCAT
  • ECCN: EAR99
  • Country of Origin: China, Japan
  • Estimated EOL Date: 2027
  • Halogen Free: Yes
  • HTSUS: 8532.90.8085
  • Manufacturer Pack Quantity: 640
  • MSL Level: 1 (Unlimited)
  • Impedance @ Frequency: 50Ohm @ 100MHz ~ 500MHz
