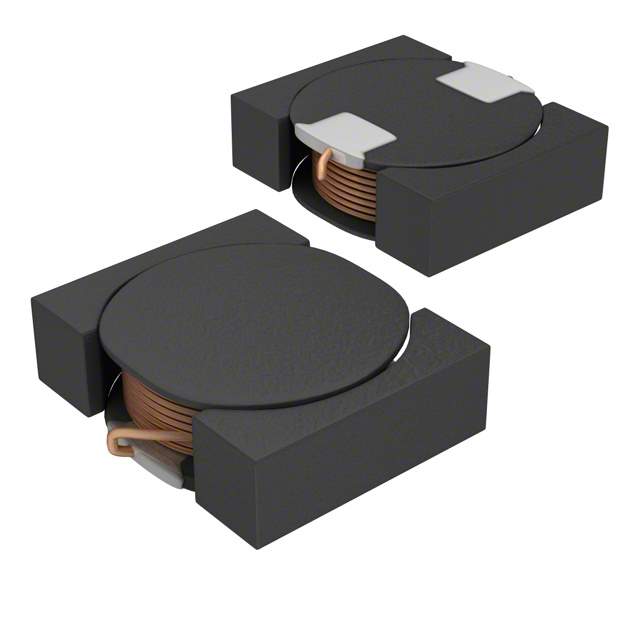

VLF504015MT-100M-CA Real Image
Same model may have multiple batches, images only for reference.

VLF504015MT-100M-CA

Part No VLF504015MT-100M-CA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 1.58A 140MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 1.58 A 140mOhm Max Nonstandard
Datasheet
VLF504015MT-100M-CA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLF-M-CA
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.58 A
Current - Saturation (Isat) 1.3A
Shielding Shielded
DC Resistance (DCR) 140mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Max) 0.059" (1.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-17207-2,445-17207-6,VLF504015MT-100M-CA-ND,445-17207-1,445-17207-ND
Standard Package 1,000
Win Source Part Number 1195483-VLF504015MT-100M-CA
Ultra Librarian 3D Model Ultra Librarian VLF504015MT-100M-CA CAD Model

Description

The VLF-M-CA series inductor is a drum core, wirewound inductor with a shielding feature.

  • Core Material: Ferrite
  • Inductance: 10 µH
  • Tolerance: ±20%
  • Seated Height: 0.059" (1.50mm) Max
  • DC Resistance (DCR): 140mOhm Max
  • Mounting: SMD (SMT)
  • Operating Temperature Range: -40°C to 105°C
  • Current Rating: 1.58 A
  • Inductance Frequency-Test: 1 MHz
  • Status: Obsolete
