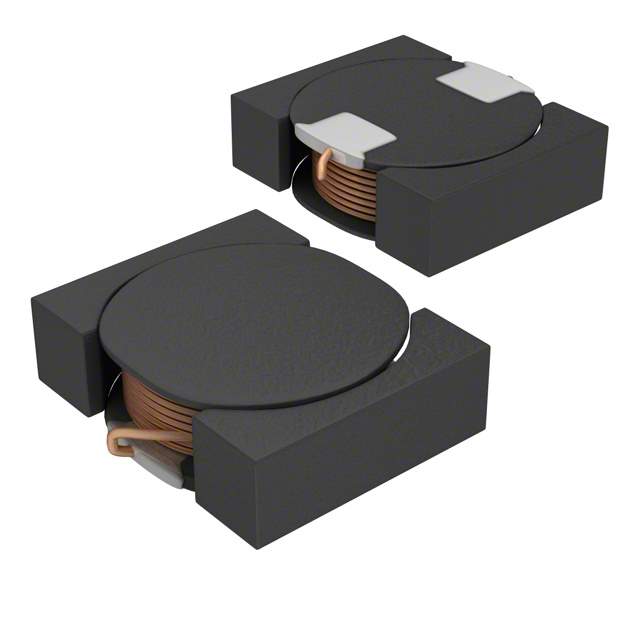

VLF504015MT-2R2M Real Image
Same model may have multiple batches, images only for reference.

VLF504015MT-2R2M

Part No VLF504015MT-2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductors for Power Circuits Wound Ferrite | FIXED IND 2.2UH 2.6A 53 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 2.6A
Current - Saturation 2.71A
Shielding Shielded
DC Resistance (DCR) 53mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279381-VLF504015MT-2R2M
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLF504015MT-2R2M CAD Model

Description

The TDK Corporation VLF504015MT-2R2M is a wirewound shielded inductor with an inductance of 2.2μH and a tolerance of ±20%.

  • DC Resistance: 53mOhm max.
  • Current Saturation: 2.71A.
  • Material: Ferrite material.
  • Operating Temperature: -40°C to 105°C.
  • Mounting: SMD style.
  • Package: Reel.
  • Category: Inductors, Coils, Chokes.
  • Status: Now obsolete.
  • Height: 0.059" (1.50mm).
  • Width: 0.157" (4.00mm).
  • Manufacturer Homepage: www.tdk.com.
