Same model may have multiple batches, images only for reference.

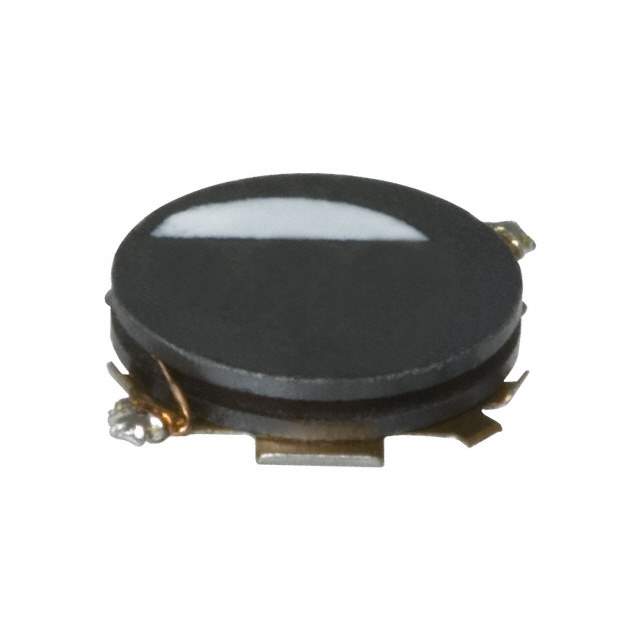

VLP5610T-220MR45 Real Image
Same model may have multiple batches, images only for reference.

VLP5610T-220MR45

Part No VLP5610T-220MR45
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 450MA 960MOHM SMD / 22 µH Unshielded Wirewound Inductor 450 mA 960mOhm Max Nonstandard
Datasheet
VLP5610T-220MR45 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLP
Package Tape & Reel
Product Status Obsolete
Type Wirewound
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 450 mA
Current - Saturation (Isat) 500mA
Shielding Unshielded
DC Resistance (DCR) 960mOhm Max
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.220" L x 0.197" W (5.60mm x 5.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names VLP5610T220MR45,Q4741378,445-1925-1,445-1925-2,445-1925-6
Standard Package 3,000
Win Source Part Number 1146696-VLP5610T-220MR45
Ultra Librarian 3D Model Ultra Librarian VLP5610T-220MR45 CAD Model

Description

The VLP5610T-220MR45 is an inductor, coil, choke fixed inductor manufactured by TDK Corporation.

  • Series: VLP
  • Type: Wirewound
  • Package: Tape and Reel
  • Shielded: Unshielded
  • Inductance: 22 µH
  • Height: 0.039 inches
  • Standard Package: 3,000 units
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • DC Resistance: 960mOhm Max
  • Lead-Free: Yes
  • RoHS Compliant: Yes
